- Transmitter and receiver
- video/audio/infrared/serial extender
- up to 328 ft

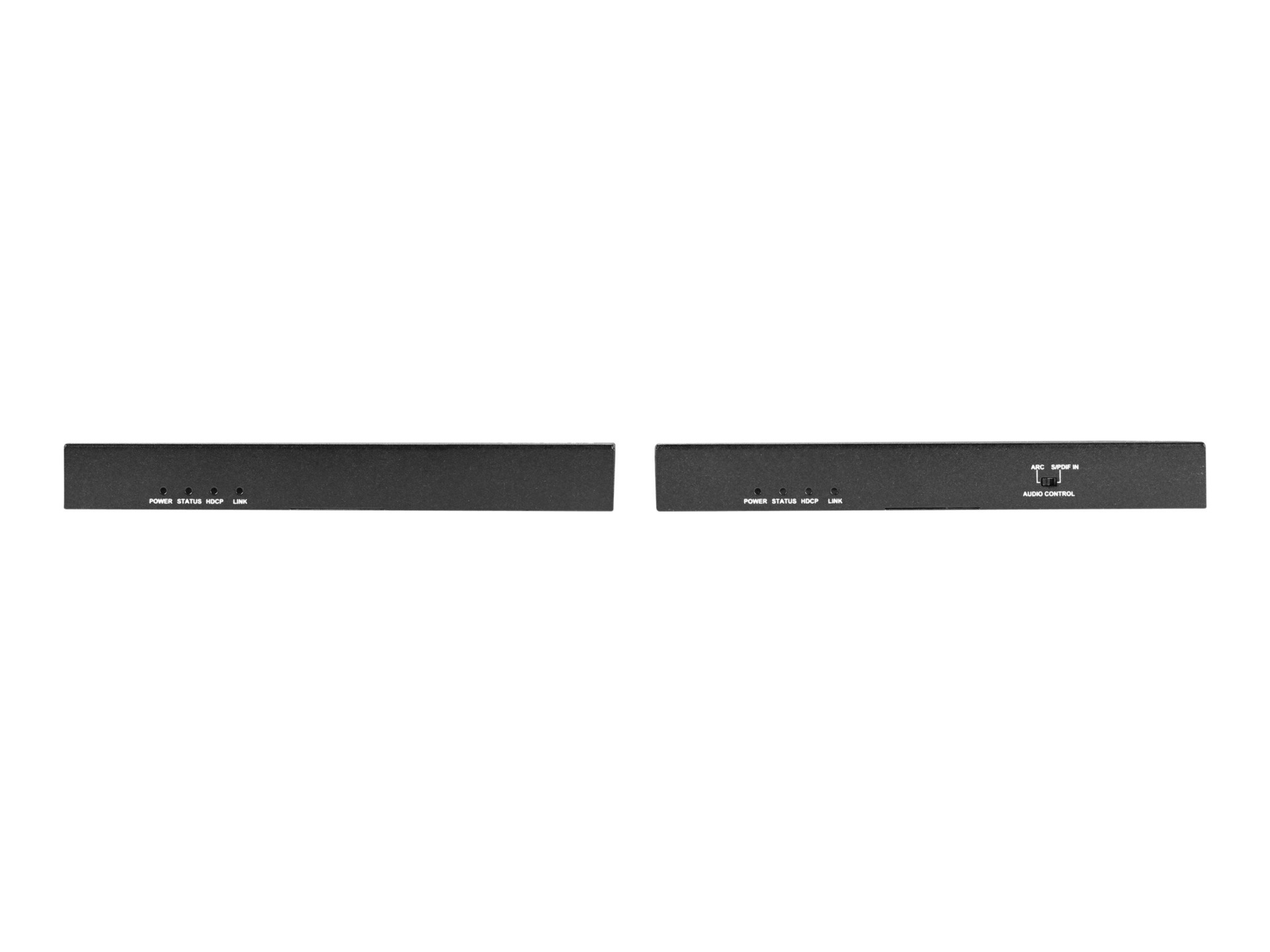

Distribute uncompressed UHD video, audio, power, or IR together up to 328-ft. (100-m) over a single CATx cable. Locking HDMI connector prevents accidental cable disconnects CE FCC IC RCM and VCCI approvals Send high-quality video and audio signals further without replacing the copper cable with this HDMI 2.0 Extender. In compliance with HDR and HDCP 2.2 standards it supports 4Kat60 444 resolution Dolby and DTS HD audio and bi-directional IR control in a low-profile box. Configure the ARC channel feed for a TV (with ARC support) or an auxiliary S/PDIF input port via an audio output DIP switch on the receiver. The extender uses proprietary one-way PoC technology to power the receiver from the transmitter. LEDs show power and signal status for established connections between devices. With increased bandwidth up to 18-Gbps you can extend signals over CATx cable up to 328-ft. while maintaining Higher resolutions Higher frame rates Multiple full HD streams in the same pipe 219 aspect ratio.
