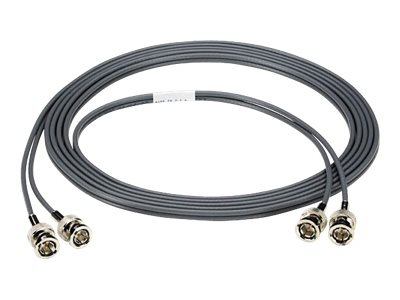

BLACK BOX 50' DS3 COAX CABLE
Mfg.Part: DS3-0050-BNC
CDW Part: 1280184
| UNSPSC: 26121606
Know your gear
Features
Cables are Siamese-style with two conductors.
For superior performance, conductors are solid, silver-plated, 26 AWG copper.
Low attenuation at standard frequencies.
For indoor environments.
UL® listed to NEC® and CEC Type CMR.
Compliant with Bellcore GR-139-CORE specifications and flame resistant to UL® 1666.
Specifications
Capacitance (Nominal) — 75 ohms
Conductors — 26 AWG silver-plated, solid copper
Construction — 95% coverage braid
CSA — CXC FT-4
Dielectric — Cellular polyethylene
Jacket — Gray PVC
Rating — UL® Listed, NEC® Type CMR
Return Loss (Minimum) — 30 dB at 100 MHz
Shield — Foil with tinned copper
Structural — 30 dB at 15–90 MHz
Velocity of Propagation (Nominal) — 78%
Cables are Siamese-style with two conductors.
For superior performance, conductors are solid, silver-plated, 26 AWG copper.
Low attenuation at standard frequencies.
For indoor environments.
UL® listed to NEC® and CEC Type CMR.
Compliant with Bellcore GR-139-CORE specifications and flame resistant to UL® 1666.
Specifications
Capacitance (Nominal) — 75 ohms
Conductors — 26 AWG silver-plated, solid copper
Construction — 95% coverage braid
CSA — CXC FT-4
Dielectric — Cellular polyethylene
Jacket — Gray PVC
Rating — UL® Listed, NEC® Type CMR
Return Loss (Minimum) — 30 dB at 100 MHz
Shield — Foil with tinned copper
Structural — 30 dB at 15–90 MHz
Velocity of Propagation (Nominal) — 78%
