ATEN PS/2 to USB Adapter

Universal Serial Bus (USB) port technology has emerged in response to the proliferation of external peripheral devices (scanners, digital cameras, removable drives, etc.), that are increasingly being connected to the latest generation of PCs. USB behaves in a similar fashion to conventional bus ports (i.e., serial, parallel, PS/2), but since it does not require any IRQs, more devices can be attached to the system, and the problem of an IRQ conflict is eliminated.

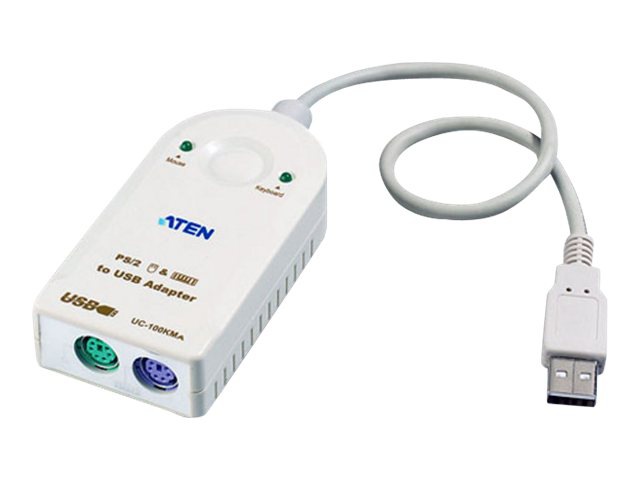

The UC100KMA PS/2 to USB Keyboard and Mouse interface converter (Adapter) provides the means for PS/2 type keyboards and mice to connect to a PC, notebook, laptop, or handheld computing device that supports the USB specification via the USB bus instead of using the older, conventional bus technology. An advantage of this for notebooks, for example, is that now an external mouse and full size keyboard can be connected at the same time without causing conflicts.

The UC100KMA has two standard 6-pin mini DIN female connectors for a PS/2 keyboard and PS/2 mouse to plug into and has an attached 30cm USB cable with a type-A plug for connecting to the PC's USB port, or to a USB hub. For further convenience - especially to users of notebooks, laptops, and handheld devices - the UC100KMA adapter derives its operating power from the Universal Serial Bus itself, so no bulky external power supply is needed. And because it is a USB-compliant device, the G-UC100KMA supports energy-saving suspend and resume operations.

Features:
No software required
Two PS/2 devices (Keyboard and Mouse) to USB Interface Converter
Supports PS/2 mice and Microsoft IntelliMouse
Supports Windows 98/98SE/Me/2000/XP; Apple Macintosh G3/G4/G5/iMac/eMac systems w/OS 8.6 or higher; Sun Blade servers 2000/100 (Sun Solaris 8); Linux; OS/2 Warp 4.51 or higher
Remote wake up function
USB 1.0 and 1.1 specification compliant
Easy installation - No software required
Bus powered - External power adapter not required
Compatible with KVM devices

Requirements:
For PC Users
Windows® 98, 98SE,2000, ME, XP
Available USB port
For MAC Users
Mac OS 8.6 or higher
Available USB port
For SUN Users
Sun Blade servers 2000/100 (Sun Solaris 8)
Available USB port
For Linux Users
Latest USB supporting Linux OS
Available USB port
Other
OS/2 Warp 4.51 or higher
Available USB port

Package Content:
1 UC100KMA - USB to PS/2 adapter for keyboard/mouse
1 Instruction Manual
