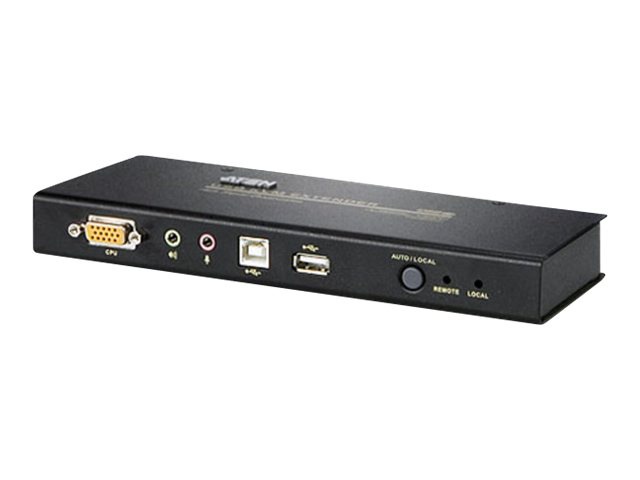

ATEN CE 800B - KVM / audio / USB extender
Mfg # CE800B
CDW # 1737933
Know your gear
The CE800 USB Console Extender allows access to a computer or USB KVM from a remote console from up to 820 ft. away. This extender is unique in that it not only supports Audio, but both units also support external USB mass storage compliant devices (Flash drives and self powered hard drives).
The unit is an ideal solution for any installations requiring computers to be kept in controlled spaces, whether it™s for security or environmental concerns. With the mass storage capabilities of the unit, updates, and patches can be applied without entering your restricted area.
Security features include two level accesses: Administrator and four User accounts, and a valid user name and password must be entered before the drive can be used [selectable].
The use of common network cable makes installation and relocation as simple as adding the proper length cable.
Features
Cat 5 (or higher) cable to connect the Local and Remote Units “ up to 820'(250m) apart
Dual console operation - control your system(s) from either the local or remote console
Pushbutton locks out the non-active console.
Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing
Special security feature requires login when mounting an external USB storage device on the remote unit
The CE800 is configurable to your operating system Win, Mac, Sun, or SPC*
Supports VGA, SVGA, and Multi-sync monitors “ the local unit supports DDC, DDC2, and DDC2B
High Resolution Video “ up to 1600 x 1200 @ 60 Hz
Built-in 8KV ESD protection and 2KV surge protection
Adjustable gain control “ manually adjusts signal strength for distance compensation.
Supports 2 speaker stereo systems and stereo microphone
Supports the scrolling wheel on most mice
Upgradeable firmware * Special Case such as FSBD choose this option if you run into startup problems.
Package Content:
1 x CE800L (local)
1 x CE800R (Remote)
1 x Custom KVM Cable
1 x F/W Upgrade Cable
2 x Grounding cables
2 x Power Adapter
Requirements
Consoles
Two VGA, SVGA, or Multi-sync monitors capable of the highest resolution that you will be using on any computer in the installation
Two USB style keyboards
Two USB style mice
Microphone and Stereo Speakers (Optional)
Computer
A VGA, SVGA or Multi-sync card
USB Host Controller and Type A USB Port
Audio out put (Optional)
KVM
USB keyboard and mouse ports
VGA support for the resolution you are using
Hotkey functionality
USB port for mass storage connectivity
Audio support (optional)
