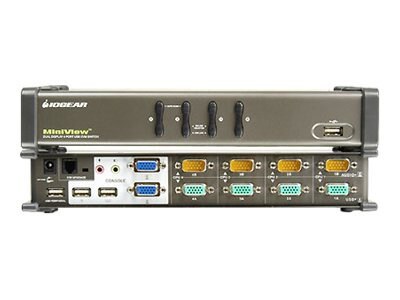

IOGEAR MiniView GCS1744 4-Port Dual View KVM Switch

Mfg # GCS1744 CDW # 784335 | UNSPSC 43211601

Quick tech specs

  • Port Dual View KVM Switch with audio and USB peripheral sharing
View All View More

Know your gear

The Dual View GCS1744 USB KVMP Switch brings dual head video functionality to IOGEAR's USB KVM switch technology. Now four dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors. In addition, the GCS1744 allows the computers to share USB peripherals connected to the USB peripheral ports, such as printers, scanners, portable hard drivers, etc.



Recognizing the importance of sound, this switch is also audio enabled. A single microphone can provide audio input to each of the computers, and you can enjoy the audio output of each computer on a single set of speakers.



Features:

One dual monitor console controls four dual monitor computers

Additional VGA display channel provided for dual display of each computer

Additional USB peripheral ports for the connected computers to share USB devices, such as printers, scanners, and portable hard drives, etc.

Audio jacks provided for speaker and microphone sharing

Independent switching of KVM, USB, and audio

Easy to install - no software required - connecting cables is all it takes

Easy to operate - computer selection via push button switches or hotkeys

Auto Scan function to monitor computer operation

Hotkey selection for OS and keyboard language

LED display for easy status monitoring

Caps Lock, Num Lock, and Scroll Lock, states are saved and restored when switching

Hot pluggable – add or remove computers for easy maintenance

Firmware upgradable

Keyboard and mouse emulation for error free booting

Supports multimedia USB keyboards

Supports Mac and Sun keyboards

Superior video quality - up to 2048 x 1536; DDC2B

Efficient, ergonomic design - logical connector layout



Requirements:

CONSOLE

2 x VGA Monitors

1 x USB style mouse

1 x USB style keyboard



COMPUTER

2 x VGA, SVGA, or Multisync port

1 x Type A USB port

Operating Systems:

Windows 98, 98SE, ME, 2000, XP

Mac OS 8.6 or greater

Sun Solaris work station

Linux, UNIX and other USB supported systems*

*Additional drivers and support may be needed



Audio: Requires 2-piece powered speaker system



Package Content:

1 x GCS1744 USB KVM Switch

1 x Power adapter

4 x Custom audio/video cables (6 ft long)

4 x Custom USB/video cables (6 ft long)

1 x Firmware upgrade cable

1 x User Manual

1 x Quick Start Guide

This item was discontinued on March 27, 2024
