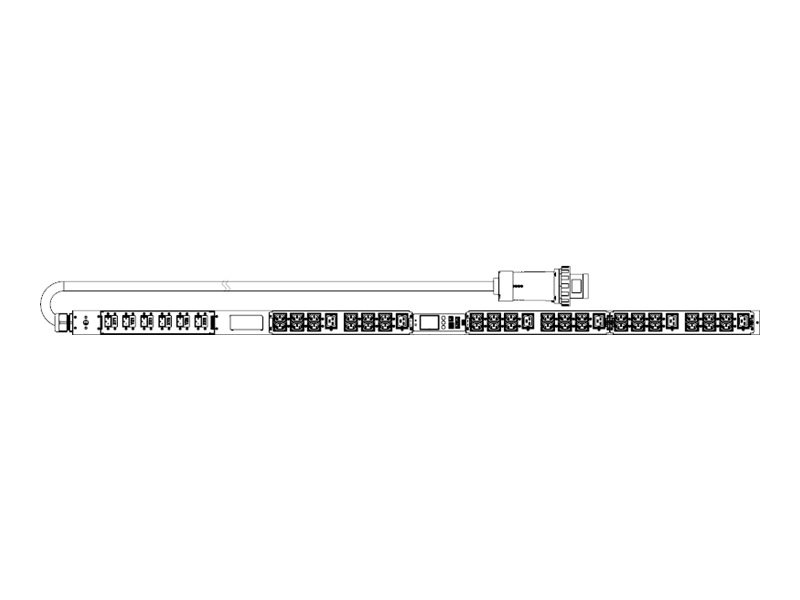

- Power distribution strip (rack-mountable)
- AC 208 V
- 17.2 kW
- Ethernet 10/100
- input: IEC 60309 60A
- output connectors: 34 (IEC 60320 C13
- IEC 60320 C19)
Choose a Monitored eConnect PDU when you need to measure power use for each rack or cabinet. Monitored eConnect PDU provides continuous voltage, current, power, power factor and energy monitoring for each breaker on the PDU with ±1% metering accuracy for power measurements. An easy to read central display provides detailed information about power usage. Additionally, the PDU has an Ethernet connection, an external connection for two environmental probes and two connections for linking PDUs together. You can enter the IP address using the local display for quick attachment to the network. Then, access the PDU remotely using a web browser for detailed measurements and to set upper and lower threshold alarms for power, temperature and humidity. Link up to 20 PDUs together to share a single Ethernet connection and IP address. The web browser lets you easily click between linked PDUs and any alarms are summarized on a separate tab. You can also forward email alarm notifications to staff and log data and events to keep a record of power use and alarms. As an alternative, you can monitor the PDU with a third-party software that accepts SNMP traps.
