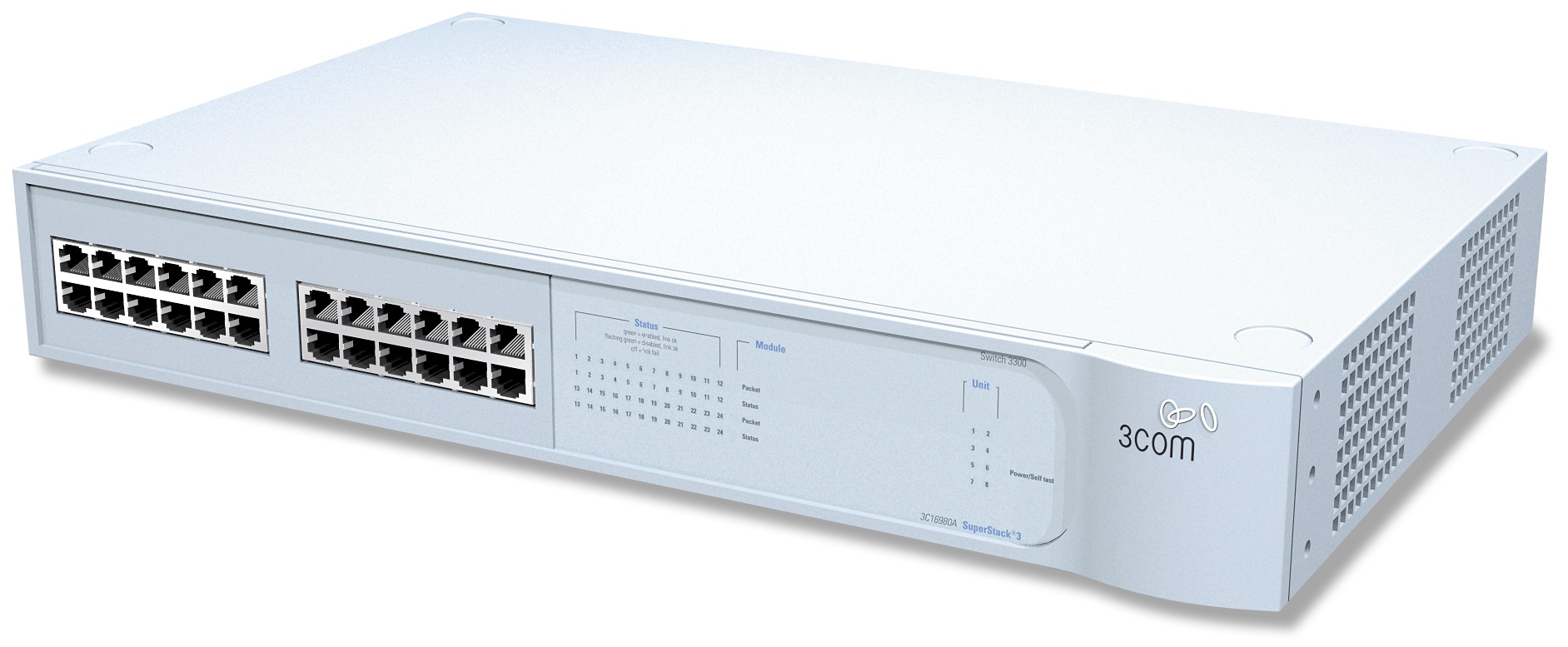

3Com SuperStack 3 Switch 3300 24-Port
Mfg # 3C16980A-US
CDW # 252483
| UNSPSC 43222612
Quick tech specs
- 24-port 10/100BASE-TX Fast Ethernet managed stackable switch with expansion slot and one matrix port
Know your gear
Autosensing Switching for Workgroups and Backbones
The 3Com® SuperStack® 3 Switch 3300 is a 24 port switch that provides the smoothest migration to Fast Ethernet with 10/100BASE-TX autosensing on all ports to adjust automatically to the speed of the attached devices. The SuperStack 3 Switch 3300 also features a expansion slot. This allows you to easily add such features as Layer 3 switching and Gigabit Ethernet connectivity when needed.
The SuperStack 3 Switch 3300 can be mixed and matched with the SuperStack II Switch 1100 and other members of the SuperStack 3 Switch 3300 family to achieve the perfect combination of cost and features for desktop, workgroup, and backbone aggregation.
Built around a plug-and-play concept, this switch requires a minimal effort to set up. Just open the box, connect your power cable and port connections, power up the unit, and your latest addition to the network is fully operational. If management is required, then 3Com Transcend® Network Supervisor software is available at no extra charge to allow you to monitor and manage in a very simple way.
Features
Support for IEEE 802.1p and 802.1Q standards enables packet prioritization and standards-based VLANs, enhancing multimedia support and improving data throughput.
Fault-tolerance features for mission-critical environments include resilient links, Spanning Tree support, and SuperStack 3 advanced redundant power systems.
Intelligent Flow Management (IFM) and 802.3x flow control prevent packet loss and improve performance under heavy load conditions, even with demanding applications like video multicasts and real-time data feeds.
Trunking support to aggregate links into a single high-speed connection to other switches or backbone networks.
Dual queues to help prioritize multimedia traffic.
Elastic port buffering for on-the-fly port buffer memory allocation, enabling automatic performance optimization based on network traffic.
Expansion slot allows you to add optional modules for Layer 3 switching, Gigabit Ethernet connectivity, and matrix connections to other SuperStack II Switch 1100 and SuperStack 3 Switch 3300 switches.
Embedded web-based monitoring and control system. Remote Monitoring (RMON) and Transcend Network Supervisor software enables authorized administrators to troubleshoot and configure a switching stack from any location.
3Com Transcend® Network Supervisor software lets you discover, map, and stress-monitor all devices on your network through an intuitive graphical user interface.
Standards Supported:
SNMP: SNMP protocol (RFC 1157), MIB-II (RFC 1213), Bridge MIB (RFC 1493), Repeater MIB (RFC 1516), VLAN MIB (RFC 1573), RMON MIB (RFC 1271), BOOTP (RFC 951)
Terminal emulation: Telnet (RFC 854)
Protocols used for administration: UDP (RFC 768), IP (RFC 791), ICMP (RFC 792), TCP (RFC 793), ARP (RFC 826), TFTP (RFC 783)
Physical Dimensions:
Height: 7 cm (2 3/4 in)
Width: 44cm (17 1/4 in)
Depth: 30cm (12 in)
Weight: 4.4kg (9 2/3lb)
Warranty:
Lifetime-For as long as the original customer owns the product or 5 years after the product has been discontinued, whichever occurs first.
-Lifetime repair or replacement and ship within 30 days of receiving the faulty item
-Lifetime software updates
-Year 1: 90 days Fast Start Telephone support 8x5, after 90 days limited
-8x5 telephone support on questions related to features, specifications, general configuration-only
-Years 2-5: No telephone support
-Years 1-5: 10 day advance hardware replacement
