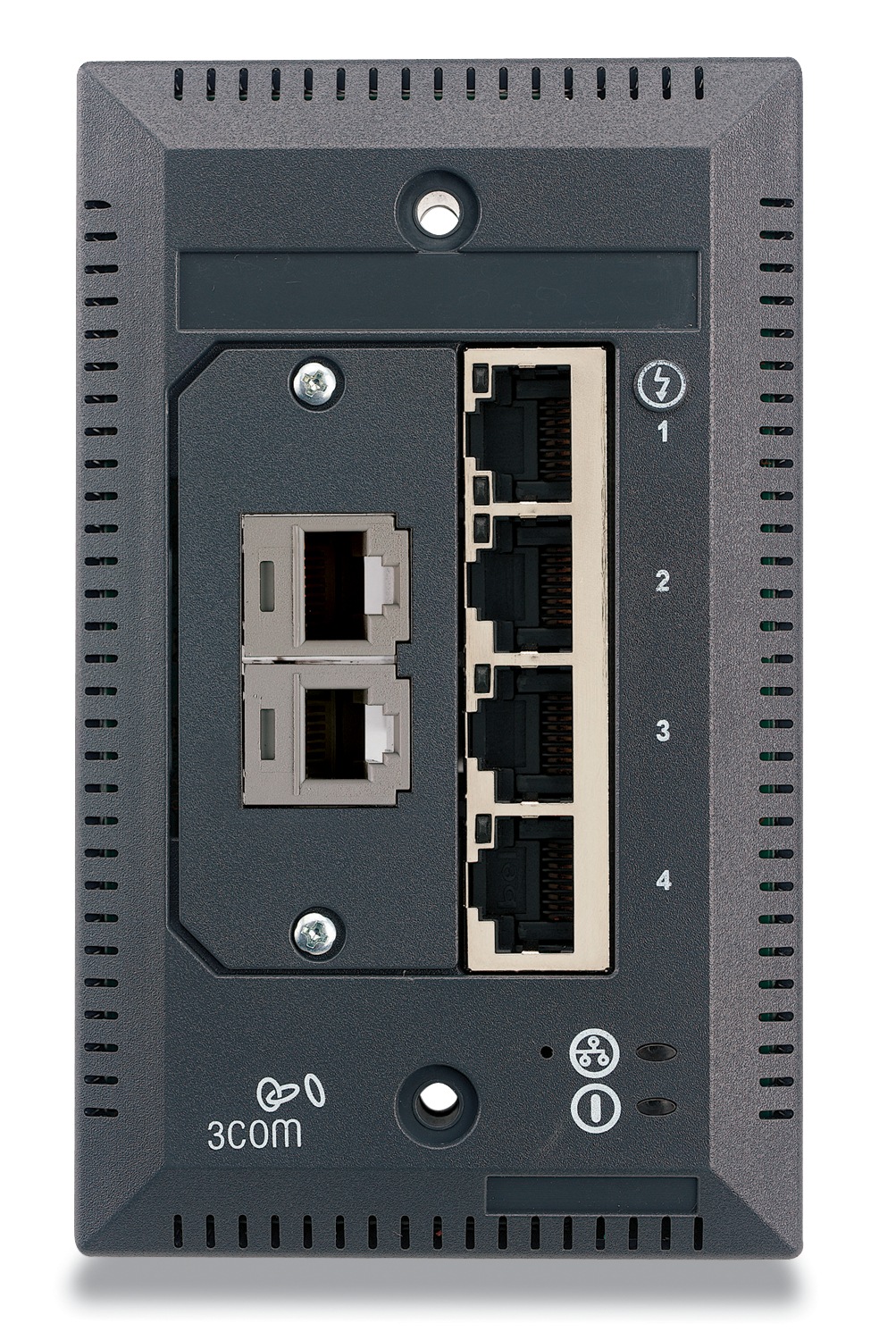

3Com NJ200 Network Jack Black
Mfg # 3CNJ200-BLK
CDW # 431504
| UNSPSC 43222612
Know your gear
Quadruple LAN Connectivity at the Wall
The 3Com® NJ200 Network Jack is an "in-the-wall," managed Ethernet switch that easily quadruples LAN infrastructure connections. Four switched ports and up to two pass-through ports connect a variety of devices via one wall outlet, making it more cost-effective than pulling additional wiring. This unique networking platform is ideal for hard-to-wire spaces such as asbestos-insulated walls, older buildings, dormitories, and modular cubicles.
The wall-mounted form factor is more secure than a freestanding hub or switch. The unit mounts inside the wall space, keeping the switch case and uplink port out of the way. A network jack isn't easily damaged or disconnected, nor will it "grow legs" and vanish. It provides unobtrusive and reliable connectivity for high-traffic locations such as classrooms, public kiosks, conference rooms, and shared office spaces.
The included management software provides port-level monitoring and central administration of 3Com NJ200 Network Jacks. Advanced 10/100 switch features and SNMP compatibility enable network jacks to be discovered and controlled by standard enterprise management platforms—including 3Com Network Supervisor and HP OpenView.
Features:
Four 10/100Mbps switched ports connect desktops, notebooks, printers, fax machines, or VoIP telephones; optional pass-through ports support telephony or additional networking
Bundled central management capabilities help streamline IT administration and enhance data security
Management GUIs offer fine control of a single port, as well as bulk administration for a group of network jacks
The Location Mapping feature remotely locates any device on the network—a great advantage for troubleshooting
Standards-based traffic prioritization, multicast rate control, and port-based VLANs balance loads and boost security
Security features include wall-mounted case, traffic monitoring, SNMP traps, and port-assigned VLANs
Power over Ethernet lowers the risk of power interruptions; port #1 can forward power to another device
Portable AC power supply for LANs without inline power capabilities is also convenient for installation and configuration
Compliance with NEMA-WD6 and ANSI commercial building standards helps ensure easy installation
Package Contents:
Network jack
2 mounting screws
3 adapter plates; Panduit, Avaya, and blank (no pass-through ports)
2 adapter plate screws
RJ-45 male/male coupler cable (for LAN downlink port with female RJ-45 connector)
CD-ROM with user guide, 3Com Local Configuration Manager, and 3Com Central Configuration Manager
Quick Start Guide
Please Note:
All 3Com Network Jacks require either inline Power over Ethernet or a local AC power supply; see Required & Optional Products page for a list of approved power sources.
Dimensions
Dimensions: 2.75"(W) x 4.5"(H) x 2.3"(D)
LEDs
LEDs: Port link
LEDs: Power forwarding
LEDs: Unit link
LEDs: Unit power
Manageability
Manageability : SNMP managable
Network ports
Port Type : 10/100BASE-TX (RJ-45) - 4
Warranty Information
Warranty Terms: Limited lifetime
