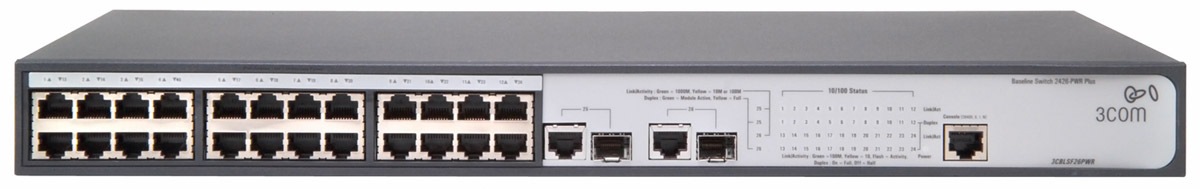

3Com Baseline Switch 2426-PWR Plus
Mfg # 3CBLSF26PWR-US
CDW # 1473784
| UNSPSC 43222612
Quick tech specs
- 24-port PoE 10/100BASE-TX Fast Ethernet managed rackmountable switch with 2 dual-personality Gigabit port pairs, configurable as 10/100/1000 or SFP
Know your gear
The "smart" voice-ready 3Com® Baseline Switch 2426-PWR Plus is a web-managed Layer 2 10/100 Ethernet switch. It offers enterprise-class features, customized and priced for small- and mid-sized organizations. With an easy-to-use switch interface and advanced features (VLANs, PoE, IEEE 802.1X authentication and Rapid Spanning Tree), this switch is the most cost-effective way to provide a converged network.
The Baseline Switch 2426-PWR Plus has twenty-four 10/100 ports and two dual-purpose Gigabit ports (copper or SFP-based fiber) to connect to high-performance computers, servers, or core network backbones.
The Baseline Switch 2426-PWR Plus provides inline power to attached devices— access points, Voice over IP (VoIP) phones, IP security cameras, etc.— via industry-standard IEEE 802.3af and pre-standard 802.3at Power over Ethernet over a single Ethernet cable, resulting in significant deployment cost savings.
This Baseline Plus switch is operational straight out-of-the-box; as long as default settings are acceptable, there is no need to configure the switch. If desired, the switch can be configured using a web browser or SNMP management software.
For networks that require more control, the switch management interface— completely redesigned to enhance useability— allows even novice users to quickly and confidently configure the switch during initial setup or normal operation. The Switch family also supports a compact Command Line Interface (CLI) that is accessed via the front panel console port. Using the CLI, major switch management options can be quickly configured.
In addition, the web interface features individual port-traffic monitoring (port mirroring) and a unique, quick-glance switch status review. A cable diagnostic tool lets users troubleshoot basic connectivity problems via the web management interface, further simplifying network installation.
Features:
PoE provides power for IP phones, wireless LAN access points, and other compliant devices over the same cable used for data
Auto-voice VLAN automatically assigns Voice over IP (VoIP) traffic to a voice-dedicated VLAN, optimizing this delay-sensitive traffic
VLANs segment the network by grouping users based on their data or traffic requirements, making the best use of available bandwidth
IEEE 802.1X network access control provides standards-based security combined with local authentication
Rapid Spanning Tree Protocol (RSTP) support improves network compatibility, scalability and availability
IGMP snooping and query and multicast filtering optimizes network performance
Switch can be managed with SNMP-compatible software
Package Contents:
Switch unit
Power cord
Self-adhesive rubber pads
Rack-mount kit
User guide
Installation CD
Warranty flyer
