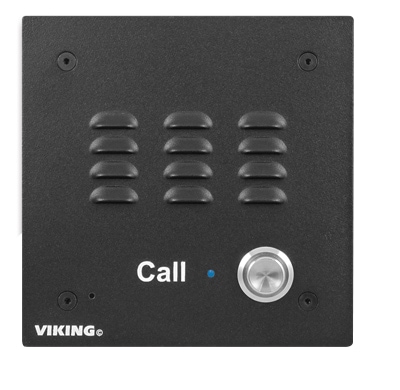

Viking Electronics W-1000 - intercom interface - black powder coat
$304.00
$192.99
Mfg # W-1000
CDW # 1257999
Know your gear
With the Viking's line of handsfree doorboxes, you are now free to answer any door from the safety of your phone.
For business, these doorboxes are designed to interface directly with the unused trunk input of a PBX or electronic key system. For residential applications, one or two doorboxes can share a single line phone when used with Viking's C-1000B door entry controller. Normal phone operations is not affected!
When the call button is pressed, the doorbox generates standard or custom ring cadences. The receiving party may then answer the call and converse freely with the visitor. The communication may also be initiated internally, to allow audible monitoring of the door area.
Applications:
Residential and Business door security
Gate communication
Communication with truck stop/gas station fuel islands
Communication with delivery and employee entrances
Use with Viking's C-1000B, RC-2A, or RC-3 to operate electronic door strikes
Add the VE-5x5 to allow the W-1000 to be surface mounted or attached to a gooseneck
Features:
24 volt talk battery
20 Hz ring generator.
Microphone volume adjustment
45° terminal strip for easy wiring
Adjustable number of rings (1-7) 3.0 REN
One year warranty
Made in the USA
Specifications:
Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
Dimensions: W-1000 - Overall - 127 x 127 x 57 mm (5.0 x 5.0 x 2.25”), Plastic Electrical Box - 102 x 102 x 57mm (4 x 4 x 2.25”), W-2000A - 140 x 115 x 38mm (5.5” x 4.5” x 1.5”)
Shipping Weight: W-1000 - 1.36 kg (3 lbs), W-2000A - .75 kg (1.5 lbs)
Standard W-1000/W-2000A Environment: -26° C to 54° C (-15° F to 130° F) with 5% to 95% non-condensing humidity
W-1000-EWP/W-2000A-EWP Environment: -26° C to 54° C (- 15° F to 130° F) with up to 100% condensing humidity
Ringer Output: 3.0 REN maximum, 20Hz
Ring Cadence: 1 second ON, 3 seconds OFF
Maximum Loop Length: 1.9 Km (6300 ft) - 24 AWG twisted pair
Maximum Power Run: 45.7 m (150 ft) - 24 AWG twisted pair
Speaker Volume: Approximately 70db maximum @ 1m
Standard Connections: (1) 4-position terminal block
EWP Connections: (4) gel-filled butt connectors
For business, these doorboxes are designed to interface directly with the unused trunk input of a PBX or electronic key system. For residential applications, one or two doorboxes can share a single line phone when used with Viking's C-1000B door entry controller. Normal phone operations is not affected!
When the call button is pressed, the doorbox generates standard or custom ring cadences. The receiving party may then answer the call and converse freely with the visitor. The communication may also be initiated internally, to allow audible monitoring of the door area.
Applications:
Residential and Business door security
Gate communication
Communication with truck stop/gas station fuel islands
Communication with delivery and employee entrances
Use with Viking's C-1000B, RC-2A, or RC-3 to operate electronic door strikes
Add the VE-5x5 to allow the W-1000 to be surface mounted or attached to a gooseneck
Features:
24 volt talk battery
20 Hz ring generator.
Microphone volume adjustment
45° terminal strip for easy wiring
Adjustable number of rings (1-7) 3.0 REN
One year warranty
Made in the USA
Specifications:
Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
Dimensions: W-1000 - Overall - 127 x 127 x 57 mm (5.0 x 5.0 x 2.25”), Plastic Electrical Box - 102 x 102 x 57mm (4 x 4 x 2.25”), W-2000A - 140 x 115 x 38mm (5.5” x 4.5” x 1.5”)
Shipping Weight: W-1000 - 1.36 kg (3 lbs), W-2000A - .75 kg (1.5 lbs)
Standard W-1000/W-2000A Environment: -26° C to 54° C (-15° F to 130° F) with 5% to 95% non-condensing humidity
W-1000-EWP/W-2000A-EWP Environment: -26° C to 54° C (- 15° F to 130° F) with up to 100% condensing humidity
Ringer Output: 3.0 REN maximum, 20Hz
Ring Cadence: 1 second ON, 3 seconds OFF
Maximum Loop Length: 1.9 Km (6300 ft) - 24 AWG twisted pair
Maximum Power Run: 45.7 m (150 ft) - 24 AWG twisted pair
Speaker Volume: Approximately 70db maximum @ 1m
Standard Connections: (1) 4-position terminal block
EWP Connections: (4) gel-filled butt connectors
