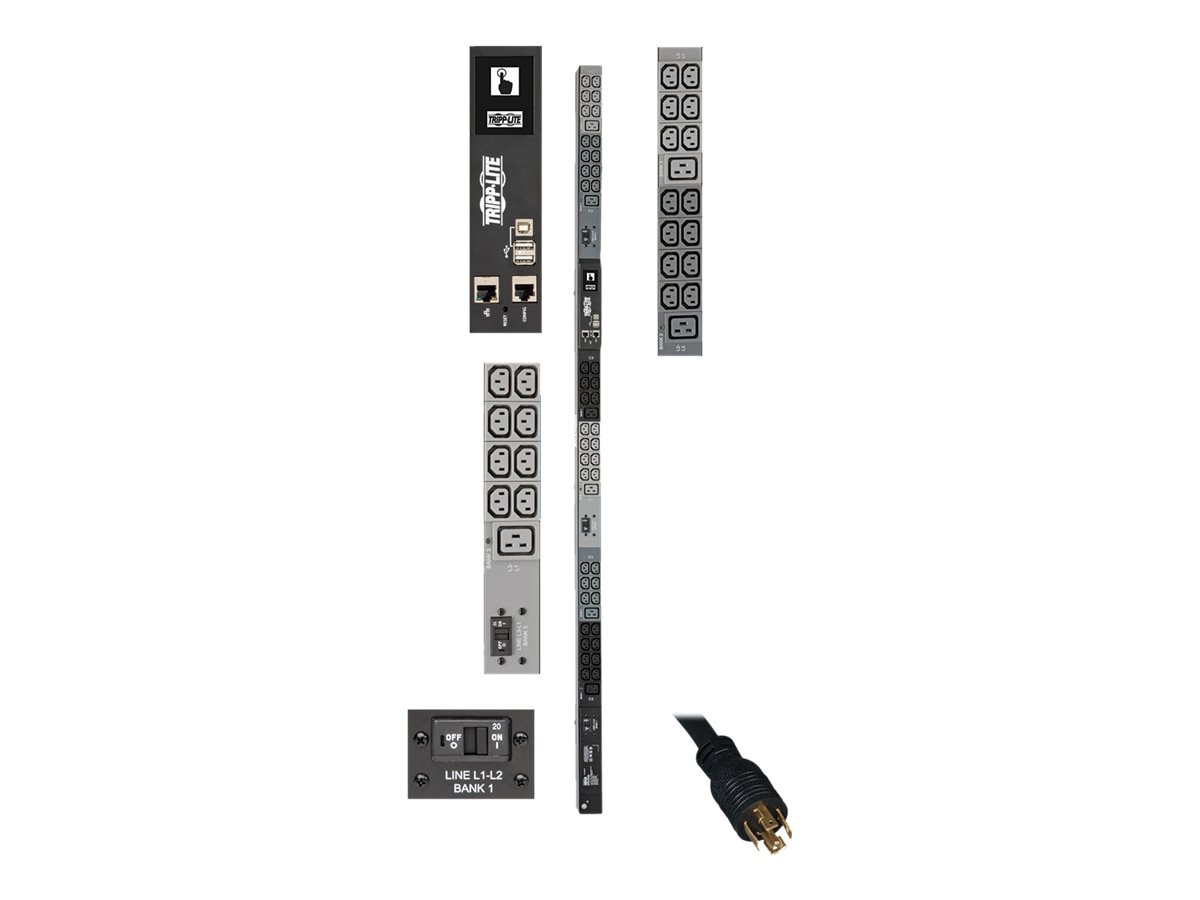

Tripp Lite 3-Phase PDU Monitored 10kW 200/208/240V 42 C13; 6 C19; L21-30P

Mfg. Part: PDU3EVN6L2130B | CDW Part: 4884389 | UNSPSC: 39121017
Availability: Call Call for availability
Warranties
Was $1,350.00
$871.99 Advertised Price
Lease Option ($25.72/month)
Note: Leasing is available to businesses only. Leasing is not available to individuals.
Product Details
  • 10kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT or industrial environment. Built-in network interface remotely monitors load levels to prevent overloads that cause downtime.
  • 10kW 200/208/240V 3-phase monitored 0U PDU
  • 48 outlets—42 C13,6 C19—with plug-lock inserts
  • Built-in LX Platform interface for remote access 24/7
  • NEMA L21-30P input with 6 ft. AC power cord
  • Touchscreen LCD with mobile access option via QR code
View Full Product Details
Made For Each Other
Quick View
Total Price:

Product Overview

Main Features
  • 10kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT or industrial environment. Built-in network interface remotely monitors load levels to prevent overloads that cause downtime.
  • 10kW 200/208/240V 3-phase monitored 0U PDU
  • 48 outlets—42 C13,6 C19—with plug-lock inserts
  • Built-in LX Platform interface for remote access 24/7
  • NEMA L21-30P input with 6 ft. AC power cord
  • Touchscreen LCD with mobile access option via QR code
The PDU3EVN6L2130B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 48 outlets - 42 C13, 6 C19 - with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
