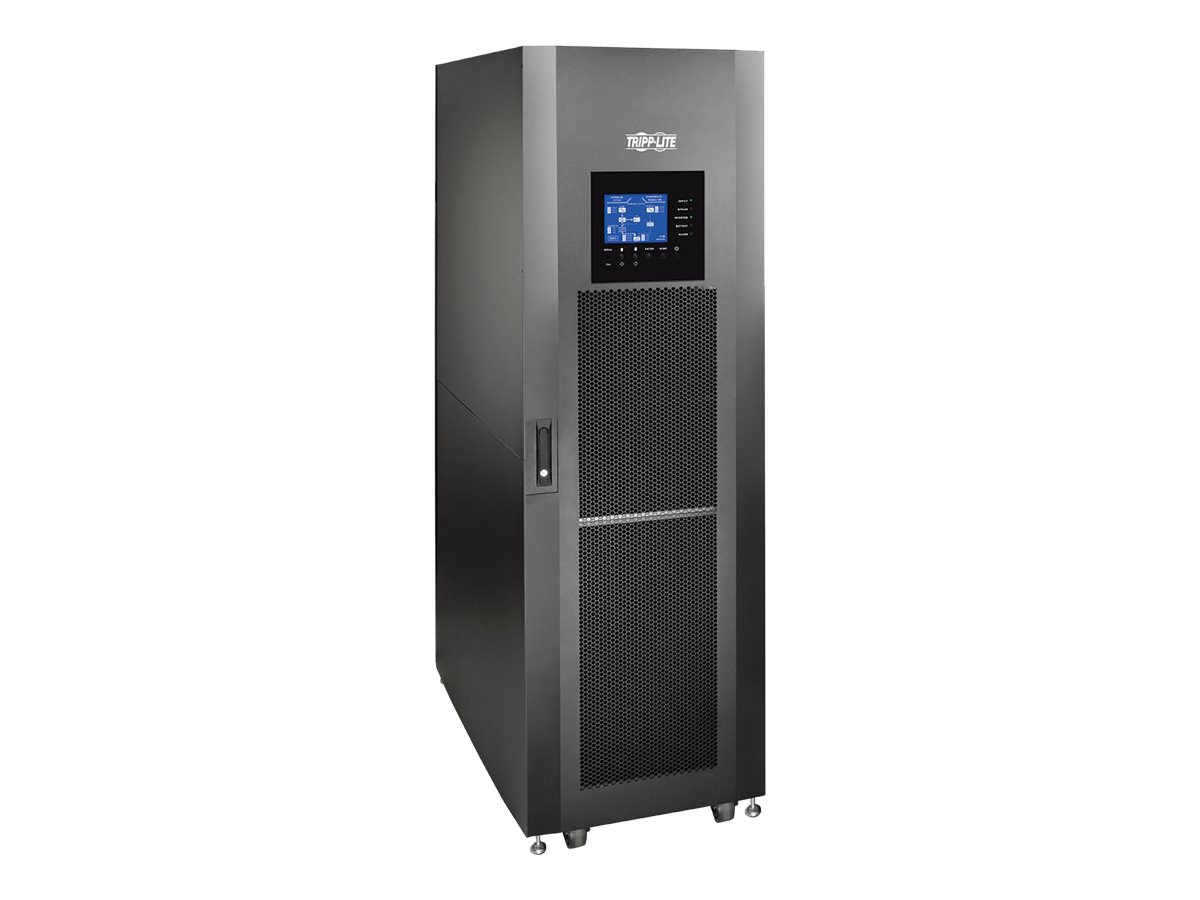

Tripp Lite 120kVA Smart Online 3-Phase UPS Large Frame Modular 208/120V

Mfg.Part: SV120KL | CDW Part: 4853922 | UNSPSC: 39121011
Availability: Call
Warranties
Was $60,080.40
$37,218.99 Advertised Price
Advertised Price
Lease Option ($1070.42/month)
Note: Leasing is available to businesses only. Leasing is not available to individuals.
Product Details
  • 3-phase 120kVA UPS system offers network-grade power protection in a highly configurable
  • modular and scalable large-chassis rack-width frame. Pre-installed WEBCARDLX network interface allows full remote access 24/7.
  • Scalable capacity up to 140kVA with N+1 redundancy
  • Economy mode option helps reduce operating and cooling costs
  • modular ups / online ups 240v / double conversion ups / 3-phase UPS systems / sine wave
View Full Product Details
Better Together
Quick View
Total Price:

Product Overview

Main Features
  • 3-phase 120kVA UPS system offers network-grade power protection in a highly configurable
  • modular and scalable large-chassis rack-width frame. Pre-installed WEBCARDLX network interface allows full remote access 24/7.
  • Scalable capacity up to 140kVA with N+1 redundancy
  • Economy mode option helps reduce operating and cooling costs
  • modular ups / online ups 240v / double conversion ups / 3-phase UPS systems / sine wave
The SV120KL SmartOnline SV Series 120kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system is ideal for protecting a variety of critical IT systems.

The SV120KL includes preinstalled input, bypass and output breakers, as well as a static transfer switch (STS) and six included 20kVA SV20PM power modules. Space is included for up to two additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.

The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.

With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode, this 120kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets, such as Tripp Lite's BP240V370, are sold separately.
