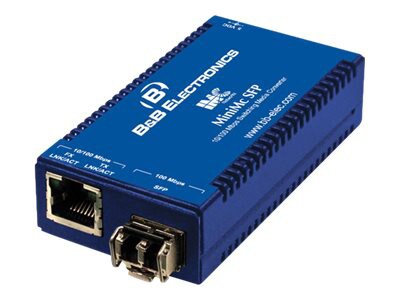

IMC Miniature 10/100 Switching Converter

Mfg. Part: 855-10623 | CDW Part: 476469 | UNSPSC: 43201553
Availability: In Stock Ships same day if ordered before 2 PM CT
Warranties
Was $128.00
$101.99 Advertised Price
Product Details
  • Miniature 10/100 Switching Converter TP-TX/FX-MM1300-SC 2km
View Full Product Details
Made For Each Other
Quick View
Total Price:

Product Overview

Main Features
  • Miniature 10/100 Switching Converter TP-TX/FX-MM1300-SC 2km
MiniMc series converters are ideal for any premises, FTTD, LAN-to-LAN or LAN-to-MAN fiber networking applications

Designed and manufactured in the USA, the MiniMc series enables network managers to connect 10Mbps and 100Mbps twisted pair network segments and active equipment to fiber optic cabling more cost-effectively than ever. Both a media and data rate converter, the MiniMc features 10/100 auto-negotiation on the twisted pair port while the fiber port operates at 100Mbps. MiniMc is the most versatile fiber converter in today's market - it comes with an external AC power supply.

MiniMc series converters are ideal for any premises, FTTD, LAN-to-LAN or LAN-to-MAN fiber networking applications. Unlike competitive products, the MiniMc is fully compliant with IEEE standards, and is backed with a six year warranty that includes the power supply.

Specifications:
IEEE 802.3u Fast Ethernet, Auto-Negotiation and 802.3 Ethernet standards
Store and forward operation
10/100 Auto-Negotiation and auto-sensing of half/full duplex on twisted pair port
RJ-45 twisted pair, SC fiber ports
LEDs: FX LNK/ACT and TX LNK/ACT
Twisted Pair 100 meters
1300 nm MM 2 km
Supports 62.5/125 and 50/125 micron multi-mode and 9/125 micron single-mode cabling
Operating temperature 32-104F / 0-40C
Humidity 5-95% (non-condensing)
AC power 100/240V, 0.25A, 50-60Hz, 5V DC
Power Consumption (Typical): 500mA
Universal Serial Bus (USB) 1.0 and above
UL, CE Mark
FCC Class B
6 year all-inclusive warranty
