Bogen Model TPU15A Telephone Paging Amplifier 15W

Mfg.Part: TPU15A | CDW Part: 492178 | UNSPSC: 52161547
Availability: In Stock
Warranties
Was $434.12
$222.99 Advertised Price
Advertised Price
Product Details
  • Telephone Paging Amplifier 15W
View Full Product Details
Better Together
Bogen Model TPU15A Telephone Paging Amplifier 15W
Quick View
Total Price:

Product Overview

Main Features
  • Telephone Paging Amplifier 15W
Compact wall-mount design

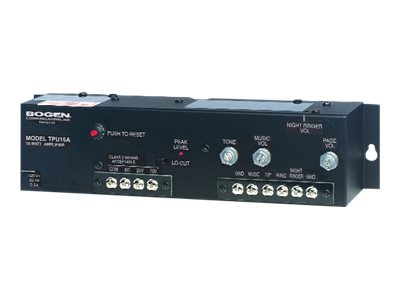

The Bogen Model TPU15A is a unique 15-watt, wallmounting amplifier, specifically designed for telephone paging applications. This compact unit incorporates state-of-the-art electronic technology. It provides voice-activated muting of music when paging, completely eliminating the need for manual activation of switches and the use of external relays.The page channel features automatic output leveling (ALC) as channel input varies, which is particularly important in telephone paging applications, where persons with varying voice levels and paging techniques have access to the system. A built-in night ringer can be triggered by an external contact closure, alerting personnel of incoming calls during non-business hours. Installation and maintenance are simple; all connections, adjustments and mounting are accomplished with a screwdriver.

Input terminals are furnished for a 600-ohm balanced telephone line, a background music source, and dry contacts which, when closed, trigger the night ringer. Output terminals offer a choice of 25 volts, 70 volts, or 8 ohms for connection of various types of loudspeakers. The Model TPU15A features an LED overload indicator, a low-cut switch for use with horn loudspeakers, a push-to-reset circuit breaker, and individual controls for tone, page volume, background music volume, and night ringer volume.The unit is professional in styling, finished in black with silver.

Features:
Compact wall-mount design
Inputs for 600-ohm balanced telephone line and background music
Built-in night ringer
Integral automatic level control (ALC) circuit
Signal-activated music muting circuit
UL and CSA listed
