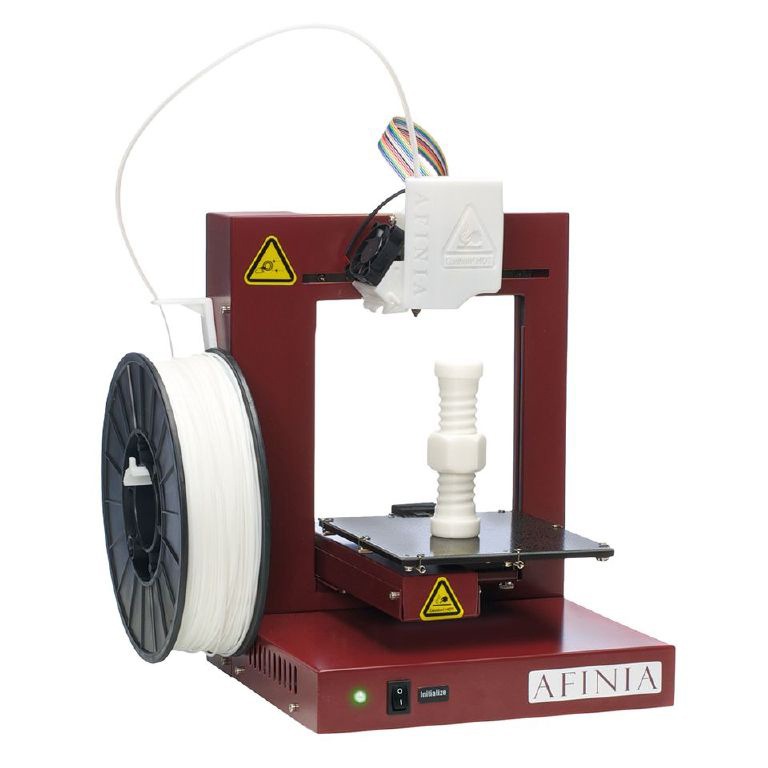

AFINIA H480 Desktop 3D Printer
Mfg # H480
CDW # 3295912
| UNSPSC 23261507
Quick tech specs
- Fully assembled and ready to use
- Auto Nozzle Height Detection
- Uses non-proprietary ABS or PLA filament
- Auto Leveling Platform Calibration
- One-year ltd warranty
- 5.5in x 5.5in x 5in build volume
Know your gear
AFINIA H480
The AFINIA H480 3D Printer provides a true "Plug and Play" 3D printing experience. The AFINIA 3D Printer comes fully assembled with easy to install software for both the PC and Mac. The 3D printer can prototype a part or model that is up to 5 inches cubed in size with layer thickness ranging from .40mm down to .15mm for incredible accuracy. A heated build platform aids in the adhesion of your model and greatly decreases the chance of warping as the ABS cools.
AWARD WINNING
MAKE Magazine awarded the AFINIA H-Series “Best Overall Experience” with “Easiest Setup” and “Easiest to Use” in their 2013 3D Printing Buyer’s Guide. Now with new setup features, the Easiest just got Easier!
CNET awarded the AFINIA H-Series 4 out of 5 stars with this quote from Rich Brown, Senior Editor “The AFINIA H-Series Desktop 3D printer is the most approachable model we’ve reviewed, and we recommend it to anyone serious about getting started with 3D printing.”
AUTO-LEVELING AND NOZZLE HEIGHT
The H480 features Auto-Leveling Platform Calibration and Nozzle Height Detection which makes the printer setup quick and easy.
EASY TO USE
The included 3D printing software features an easy-to-use interface to import .STL files and automatically generate any support material needed for your design. This support material, layer thickness, and fill can be optimized in the software for more intricate builds. The breakaway support material is easily removed by hand or with the included set of tools. Design files for 3D printing can be created using a multitude of free, entry level or professional CAD/CAM software such as Autodesk, Solidworks, Sketchup, Tinkercad, Blender and openSCAD. There is also an extensive online community for downloading and sharing 3D model files.
STANDALONE PRINTING
The AFINIA H480 3D printer comes equipped with built-in, on-board memory so once a job has been transferred to the printer, it is no longer necessary to have it connected to your computer.
USE NON-PROPRIETARY 1.75mm ABS or PLA PLASTIC FILAMENT
The H480 prints using inexpensive, non-proprietary, high-quality plastic filament. Afinia offers both a Premium and Value-Line series in an array of colors and styles.
INSIDE THE BOX
Afinia H480 3D Printer
Filament hanger and tube
Software installer disc for PC/Mac
User’s Manual and Quick Start Guide
Auto-Leveling Platform Calibration device and cable
Full spool of Premium Natural/White ABS filament (700g)
Perf cell boards (3)
USB 2.0 cable
External power supply
Handling tools
-Putty knife
-Utility knife
-Snipping pliers
-Tweezers
-Hex wrench
-Nozzle wrench
-Gloves (1 pair)
SOFTWARE
PC: Win XP, Vista (32- and 64-bit),Windows 7/8/8.1 (32- and 64-bit)
Mac: 10.6 – 10.8
PRINTING
Build Volume: 140 x 140 x 135mm
Vertical Resolution: 0.15 – 0.40mm
Print Material: ABS, PLA
Filament Diameter: 1.75mm
Heated Platform
ELECTRICAL
Power: 100-240VAC, 2.5A, 50-60Hz
Connection: USB 2.0
PHYSICAL
Dimensions: 245 x 260 x 350mm
Weight: Under 11 lbs.
Environmental Temperature: 60°F to 85°F recommended
Relative Humidity: 20 – 50% recommended
FILE INPUT
Input Format: STL, UP3, UPP
WARRANTY
One (1) year limited warranty
2nd year extended warranty available for purchase
