Cisco Catalyst 6509-V-E - switch

Cisco Catalyst 6509-V-E - switch

Mfg. Part: WS-C6509-V-E  |  CDW Part: 1438265  |  UNSPSC: 43222612
Log On to Email this Page or
Add to Favorites.




V-E - Switch - 21U external
Main Features
Qty
$6,859.99
Advertised Price
Lease Option
Leasing
Please see cdw.com/leasing for more information.
($212.93 /month)
Availability:
Availability
Call for availability.
Call
This product is currently unavailable online. Please call us to place this order.
Product Overview
Technical Specs
Accessories

Compatible Accessories for Cisco Catalyst 6509-V-E - switch

Product Overview Availability Advertised Price

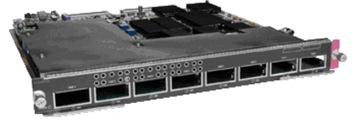

Cisco Catalyst 6500 8-Port 10 Gigabit Ethernet Module
Catalyst 6500 8-Port 10 Gigabit Ethernet Module with DFC3CXL, requires X2
Availability
Call for availability.
Call
$29,679.99
Qty

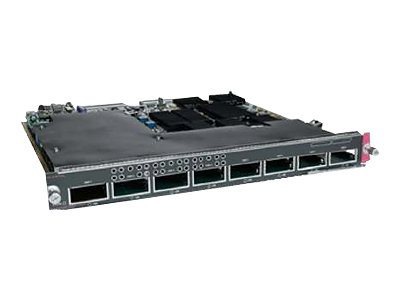

Cisco Catalyst 6500 8-Port 10 Gigabit Ethernet Module
Catalyst 6500 8-Port 10 Gigabit Ethernet Module with DFC3C, requires X2
Availability
Call for availability.
Call
$24,899.99
Qty
Product Overview Cisco Catalyst 6509-V-E - switch
Main Features
  • V-E
  • Switch
  • 21U external
The 9-slot Cisco Catalyst 6509 Enhanced Vertical Switch (6509-V-E) provides capabilities to support system bandwidth capacity (80 Gbps per slot) up to 1440 Gbps and enhanced cable management capabilities. It also provides front-to-back airflow that is optimized for hot and cold aisle designs in colocated data center and service provider deployments and is compliant with Network Equipment Building Standards (NEBS) deployments.

Cisco Catalyst 6500 E-Series chassis offer exceptional investment protection by supporting multiple generations of products on the same chassis, thereby reducing total ownership costs. The Cisco Catalyst 6509-V-E chassis supports both the Cisco Catalyst 6500 Supervisor Engine 32 and Cisco Catalyst 6500 Series Supervisor Engine 720 family, along with associated LAN, WAN, and services modules.
Technical Specifications Cisco Catalyst 6509-V-E - switch
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Slot Provided
Free Qty: 9
Total Qty: 9
Type: Expansion slot
Networking
Connectivity Technology: Wired
Form Factor: External
Subcategory (FE): Network hubs and switches
Type: Switch
Miscellaneous
Compliant Standards: ACA TS001 , CE , CISPR 22 Class A , EN 61000-6-1 , EN50082-1 , EN55022 Class A , EN55024 , FCC CFR47 Part 15 , FCC Class A certified , IEC 60950 , NEBS level 3 , UL 60950 , VCCI Class A ITE
Height (Rack Units): 21
MTBF: 225,000 hour(s)
Environmental Parameters
Humidity Range Operating: 5 - 95%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Compatibility: PC
Manufacturer: Cisco Systems
Model: 6509-V-E
Packaged Quantity: 1
Product Line: Cisco Catalyst
Power Device
Form Factor: Plug-in module
Installed Qty: 0
Max Supported Qty: 2
Type: Power supply - hot-plug / redundant
Dimensions & Weight
Depth: 21 in
Height: 36.7 in
Weight: 121 lbs
Width: 17 in
Cabinet (Chassis)
Installed Devices Modules Qty: 0
Supported Devices Modules Qty: 9
