All Categories  > Networking Products  > Cable/DSL/ISDN Modems  > Actiontec Qwest Modular DSL Router M1000 - router

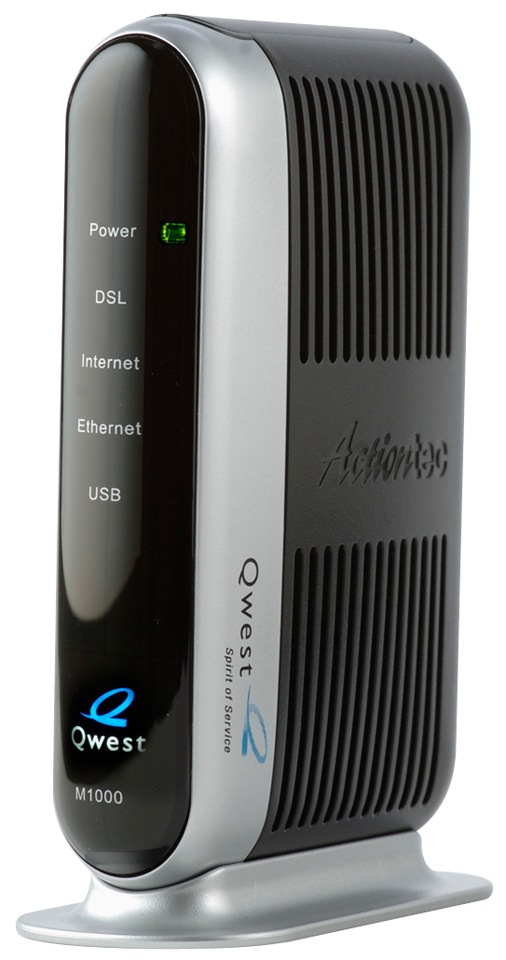

Actiontec Qwest Modular DSL Router M1000 - router View Photo Gallery

Actiontec Qwest Modular DSL Router M1000 - router

Mfg. Part: EUADSL23C-08  |  CDW Part: 1398578  |  UNSPSC: 43222609
Log On to Email this Page or
Add to Favorites.




Router - DSL - Ethernet, Fast Ethernet external
Main Features
Qty
$76.99
Advertised Price
$15.99
Advertised Price
Recommended Warranty: 2 Extra Years Replacement Extended Warranty $51-$100  |  See all warranties

Availability:
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
Product Overview
Technical Specs
Warranties and Services
Product Overview Actiontec Qwest Modular DSL Router M1000 - router
Main Features
  • Router
  • DSL
  • Ethernet
  • Fast Ethernet external
Actiontec's M1000 is the industry's first modular DSL modem/router, designed to equip broadband service providers with a single-SKU solution and potential revenue stream for consumer premises equipment. It enables service providers to supply all customers with the same low-cost base unit and then add user-requested upgrades such as wireless networking with snap-in expansion modules. Consumers love it for its ease of use, simple home network capabilities, and ability to share a broadband connection around the digital home.
Technical Specifications Actiontec Qwest Modular DSL Router M1000 - router
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Cable
Connectivity Details Type: USB cable
Connectivity Details Type: Network cable
Connectivity Details Type: Phone cable
Environmental Parameters
Humidity Range Operating: 8 - 95%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Compatibility: Mac , PC , Unix
Manufacturer: Actiontec Electronics
Model: M1000
Packaged Quantity: 1
Product Line: Actiontec Qwest Modular DSL Router
Interface Provided
Connector Type: 4 pin USB Type B
Qty: 1
Type: USB
Connector Type: RJ-11
Interface: ADSL2+
Type: Modem
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX
Type: Network
Type: Phone line
Line Properties
Framing Format: ANSI T1.413
Modem
Digital Signaling Protocol: ADSL2 , ADSL2+
Max Transfer Rate: 24 Mbps
Protocols & Specifications: ITU G.992.1 (G.DMT) , ITU G.992.2 (G.Lite) , ITU G.992.3 (G.DMT.bis) , ITU G.992.4 (G.lite.bis) , ITU G.992.5 , ITU G.994.1 (G.hs)
Type: DSL modem
Networking
Compliant Standards: IEEE 802.1D , IEEE 802.3 , IEEE 802.3u , IEEE 802.3x
Connectivity Technology: Wired
Data Link Protocol: Ethernet , Fast Ethernet
Features: ARP support , Auto-negotiation , DHCP support , DMZ port , DoS attack prevention , Firewall protection , Full duplex capability , NAT support , PAT support , Stateful Packet Inspection (SPI) , VPN passthrough
Form Factor: External
Network Transport Protocol: AAL2 , AAL5 , ICMP/IP , IPSec , PPPoA , PPPoE , PPTP , TCP/IP , UDP/IP
Remote Management Protocol: HTTP
Routing Protocol: RIP-1 , RIP-2 , Static IP routing
Type: Router
Power Device
Form Factor: External
Type: Power adapter
System Requirements
Min Operating System: Apple MacOS 9.0 or later , BSD/OS , Linux , Microsoft Windows 98SE/2000/ME/XP , Microsoft Windows Vista , UNIX
Cables (Details)
Form Factor: External
Included Qty: 1
