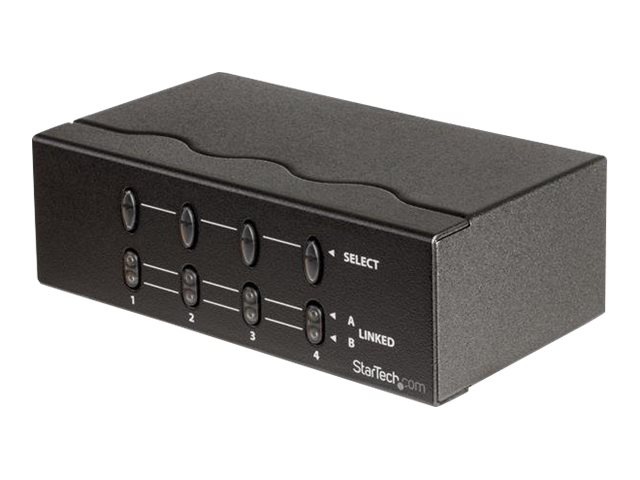

StarTech.com 4 Port VGA Matrix Video Switch - 250 MHz

StarTech.com 4 Port VGA Matrix Video Switch - 250 MHz

Mfg. Part: ST224MX  |  CDW Part: 718866  |  UNSPSC: 43211604
Log On to Email this Page or
Add to Favorites.




4-Port Dual Input VGA Matrix Splitter
Main Features
Qty
$109.99
Advertised Price
Availability:
Availability
Call for availability.
Call
Product Overview
Technical Specs
Accessories

Compatible Accessories for StarTech.com 4 Port VGA Matrix Video Switch - 250 MHz

Product Overview Availability Advertised Price
StarTech.com 6 ft Coax High Resolution VGA Monitor Extension Cable-HD15 M/F
SVGA High Density DB15 Male to High Density DB15 Female 6 foot coaxial cable with thumbscrews on both ends
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
$10.99
Qty
StarTech.com Coax VGA Monitor Extension Cable - VGA extender - 15 ft
VGA extender - HD-15 (M) - HD-15 (F) - 15 ft - molded
Availability
Call for availability.
Call
$21.99
Qty
StarTech.com VGA Video Extender over Cat5 – Receiver Included
Monitor extender - external - up to 430 ft
Availability
Call for availability.
Call
$142.99
Qty
Product Overview
Main Features
  • 4-Port Dual Input VGA Matrix Splitter
Allows you to connect 2 computers to 4 monitors and switch video signals to any desired display "This 2x4 VGA Matrix Switcher/Splitter allows users to share two separate VGA input signals (as well as corresponding audio source signals) between up to four monitors.

Providing convenient push button control, the VGA Matrix Switcher/Splitter allows both of the VGA input signals to be switched/split for display on any of the connected VGA displays (up to four) - in turn, ensuring centralized control of the VGA signal output destination at the push of a button.

To ensure optimized VGA distribution and signal management even over longer distance signal transmissions, the VGA Matrix Switcher/Splitter features a built-in signal booster that facilitates installation of displays at distances of up to 210ft away from the source computer, while maintaining flawless signal integrity. The switcher/splitter offers high video bandwidth (250 Mhz) capability, providing display resolutions of up to 1920 x 1440 pixels.
Designed to provide maximum control while saving space and eliminating clutter, this VGA Matrix splitter/switcher can be used as a standalone solution or rackmounted using the (included) ear-mounts."
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Bay Provided
Type: None
Bay Required
Type: None
Header
Compatibility: PC
Manufacturer: StarTech.com
Model: 2x4 High Resolution Matrix VGA Video Switch
Packaged Quantity: 1
Product Line: StarTech.com
Interface Provided
Connector Type: 15 pin HD D-Sub (HD-15)
Interface: VGA
Qty: 4
Type: Display / video
Interface Required
Connector Type: 15 pin HD D-Sub (HD-15)
Interface: VGA
Total Qty: 2
Type: Display / video
Miscellaneous
Compliant Standards: CE , FCC Part 15 B
Networking
Connectivity Technology: Wired
Form Factor: External
Ports Qty: 4
Status Indicators: Port status
Subcategory (FE): Peripheral sharing and hubs
Type: Video splitter
Power Device
Form Factor: External
Type: Power adapter
Service
Support Details Full Contract Period: 1 year
Support Details Type: Limited warranty
Slot Provided
Type: None
Slot Required
Type: None
Dimensions & Weight
Depth: 3 in
Height: 1.7 in
Weight: 1.1 lbs
Width: 7.9 in
KVM
KVM Max Supported Video Bandwidth: 250 MHz
KVM Max Supported Video Resolution: 1920 x 1440
KVM V-Sync Rate At Max Resolution: 60 Hz
Service & Support
Type: 1 year warranty
