All Categories  > Servers  > RISC Servers  > Sun SPARC Enterprise T5220 - UltraSPARC T2 1.2 GHz

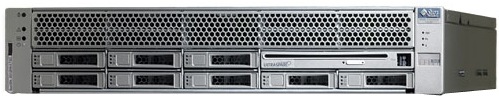

Sun SPARC Enterprise T5220 - UltraSPARC T2 1.2 GHz View Photo Gallery

Sun SPARC Enterprise T5220 - UltraSPARC T2 1.2 GHz

Mfg. Part: SEDPCFF1Z  |  CDW Part: 1324477  |  UNSPSC: 43211501
Log On to Email this Page or
Add to Favorites.




Server - rack-mountable - 2U - 1-way - 1 x UltraSPARC T2 1.2 GHz - RAM 32 GB - SAS - hot-swap 2.5" - HDD 2 x 146 GB - DVD±RW - Gigabit Ethernet - Solaris 10 - Monitor : none
Main Features
Qty
$26,119.99
Advertised Price
Lease Option
Leasing
Please see cdw.com/leasing for more information.
($778.90 /month)
Availability:
Availability
Call for availability.
Call
Product Overview
Technical Specs
Accessories

Compatible Accessories for Sun SPARC Enterprise T5220 - UltraSPARC T2 1.2 GHz

Product Overview Availability Advertised Price
Sun StorageTek RAID controller battery backup unit - Li-Ion
RAID controller battery backup unit - 1 x lithium ion
Availability
Call for availability.
Call
$96.99
Qty
Sun XVR 300 Video Card
PCI Express x8, DDR SDRAM, ATI, 128 MB installed, 24-bit bus width, 1920 x 1200 max resolution, 2 monitors supporte ... more
Availability
Call for availability.
Call
$295.99
Qty
Sun cable management arm
Cable management arm
Availability
Call for availability.
Call
$115.99
Qty
Product Overview
Main Features
  • Server
  • rack-mountable
  • 2U
  • 1-way
  • 1 x UltraSPARC T2 1.2 GHz
  • RAM 32 GB
  • SAS
  • hot-swap 2.5"
  • HDD 2 x 146 GB
  • DVD±RW
  • Gigabit Ethernet
  • Solaris 10
  • Monitor : none
Meet the world's ultimate virtualization server. The Sun SPARC Enterprise T5220 server is the fastest server designed for virtualization, providing the flexibility and power of 64 virtual systems in a single server - that's over 1250 systems/rack, and maximum energy efficiency, with the industry's best performance per watt. This much virtualization power has never been available in such a compact server and can save you millions in power and cooling costs.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Audio Input
Type: None
Audio Output
Type: None
Bay Provided
Form Factor: 2.5"
Form Factor (metric): 6.4 cm
Free Qty: 6
Total Qty: 8
Type: Hot-swap
Form Factor: 5.25" Slim Line
Form Factor (metric): 13.3 cm Slim Line
Free Qty: 0
Total Qty: 1
Type: Front accessible
Cabinet
Chassis Built-in Devices: Remote management adapter
Environmental Parameters
Humidity Range Operating: 10 - 90%
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F
Sound Emission: 63 dB
Header
Compatibility: Unix
Manufacturer: Sun Microsystems
Model: T5220
Packaged Quantity: 1
Product Line: Sun SPARC Enterprise
Interface Provided
Connector Type: 9 pin D-Sub (DB-9)
Interface: RS-232
Qty: 1
Type: Serial
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Qty: 4
Type: Network
Type: Management
Interface: Ethernet 10Base-T/100Base-TX
Connector Type: 4 pin USB Type A
Location (AA): 2 in front
Type: Hi-Speed USB
Miscellaneous
Compliant Standards: AS/NZ 3548 Class A , BSMI , BSMI CNS 13438 Class A , C-Tick , CB , CE , CSA , cUL , EN 60950 , EN 61000-3-2 , EN 61000-3-3 , EN300-386 , EN55022 Class A , EN55024 , FCC , FCC CFR21 Part 1040 , FCC CFR47 Part 15 , GOST , ICES-003 , ICES-003 Class A , IEC 60950 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , IEC 825-1 , IEC 825-2 , MIC , RoHS 6/6 , UL , UL 60950 , VCCI , VCCI Class A ITE
Height (Rack Units): 2
Modem
Type: None
Networking
Data Link Protocol: Ethernet , Fast Ethernet , Gigabit Ethernet
Ethernet Ports: 4 x Gigabit Ethernet
Form Factor: Integrated
Remote Management Controller: Integrated Lights Out Management (ILOM)
Remote Management Protocol: IPMI 2.0 , SNMP 1 , SNMP 2c , SNMP 3
Type: Network adapter
Optical Storage (2nd)
Type: None
OS Provided
Delivery Type: Preloaded
Type: SunSoft Solaris 10
Power Device
Frequency Required: 50/60 Hz
Installed Qty: 2
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Provided: 750 Watt
Power Redundancy: Yes
Power Redundancy Scheme: N+1
Type: Power supply - hot-plug
Printer
Type: None
Processor
64-bit Computing: Yes
Clock Speed: 1.2 GHz
Installed Qty: 1
Manufacturer: Sun
Max Supported Qty: 1
Multi-Core Technology: 8-core
Server Scalability: 1-way
Type: UltraSPARC T2
Service
Support Details Type: Limited warranty
Service & Support
Type: 1 year warranty
Slot Provided
Form Factor: Low-profile
Free Qty: 2
Total Qty: 2
Type: Shared PCI Express x4/ XAUI
Type: PCI Express x8
Type: PCI Express x4
Form Factor: FB-DIMM 240-pin
Free Qty: 0
Total Qty: 16
Type: Memory
Software
Type: Sun Java Enterprise System
Storage Controller
Form Factor: Integrated
Installed Qty: 1
RAID Level: RAID 0 , RAID 1
Type: Serial Attached SCSI
Storage Hard Drive
Capacity: 146 GB
Installed Qty: 2
Interface Type: Serial Attached SCSI
Spindle Speed: 10000 rpm
Type: Hot-swap
Storage Hard Drive (2nd)
Type: None
Storage Removable
Type: None
System
Designation: Corporate business , Small business
Hard Drive(-s) Total Capacity: 292 GB
Type: Server
Cache Memory
Installed Size: 4 MB
Per Processor Size: 4 MB
Type: L2 cache
Dimensions & Weight
Depth: 28.1 in
Height: 3.5 in
Weight: 52 lbs
Width: 16.7 in
RAM
Configuration Features: 16 x 2 GB
Data Integrity Check: ECC
Features: Fully buffered
Form Factor: FB-DIMM 240-pin
Installed Size: 32 GB
Max Supported Size: 128 GB
Technology: DDR2 SDRAM
Audio Output Details
Speaker Type: None
Cabinet (Chassis)
Form Factor: Rack-mountable
Front Accessible Bays Qty: 1
Hot-Swap Bays Qty: 8
Manufacturer Form Factor: Rack-mountable
Server Storage Bays: Hot-swap
Server Swappable Drive Form Factor: 2.5"
Server Swappable Drive Form Factor (metric): 6.4 cm
Server Swappable Drive Interface: SAS
Display (Projector)
Type: None.
Optical Storage
Type: DVD±RW
Storage Hard Drive (3rd)
Type: None
