All Categories  > Data Storage Products  > Multi-Drive Enclosures  > Promise VTrak E610fD - Hard drive array - 16 bays
Promise VTrak E610fD - Hard drive array - 16 bays View Photo Gallery

Promise VTrak E610fD - Hard drive array - 16 bays

Mfg. Part: VTE610FD  |  CDW Part: 1307107  |  UNSPSC: 43201802

Hard drive array - 16 bays ( SATA-300 / SAS ) - 0 x HD - 4Gb Fibre Channel (external) - rack-mountable - 3U
Main Features
Log On to Email this Page or
Add to Favorites.





Qty
$7,413.99
Advertised Price
Lease Option
Leasing
Please see cdw.com/leasing for more information.
($230.13 /month)
$1,079.99
Advertised Price
Recommended Warranty: Promise 3yr Onsite Parts Replacement Service  |  See all warranties

Availability:
Availability
Orders placed today will ship within 3 days.
1-3 days
Product Overview
Technical Specs
Accessories
Warranties and Services

Compatible Accessories for Promise VTrak E610fD - Hard drive array - 16 bays

Product Overview Availability Advertised Price
Promise Serial Attached SCSI (SAS) external cable - 1.6 ft
Serial Attached SCSI (SAS) external cable - 4-Lane - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) - 26 pin 4x S ... more
Availability
Orders placed today will ship within 4 days.
2-4 days
$59.99
Qty
Promise Ext Mini-SAS (SFF 8088) to Infiniband (SFF 8470) 1M
Serial Attached SCSI (SAS) external cable - 4-Lane - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) - 4x InfiniBa ... more
Availability
Orders placed today will ship within 7 days.
5-7 days
$49.99
Qty

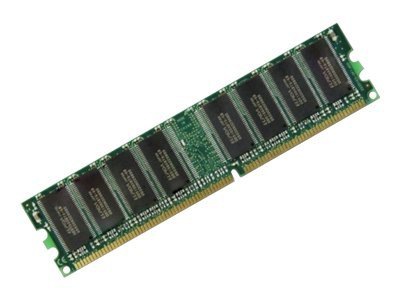

Promise memory - 2 GB - DDR2
Memory - 2 GB - DDR2
Availability
In stock and ready for shipment. Ships same day if ordered before 4pm CT.
In Stock
$162.99
Qty
Product Overview
Main Features
  • Hard drive array
  • 16 bays ( SATA-300 / SAS )
  • 0 x HD
  • 4Gb Fibre Channel (external)
  • rack-mountable
  • 3U
Promise VTrak products provide the shortest path to advanced host independent storage using SCSI, SAS, Fibre Channel and iSCSI host connectivity. All Vtrak products use standards based management protocols and a user friendly web GUI so both novice and experienced users can solve today’s IT problems quicker than ever before. VTrak products are backed by a 3-Year warranty with FREE 24x7 phone support and advance replacement parts.

· 16 Hot-Swap SAS/SATA drive bays in a robust 3U chassis
· Fully redundant, No single point of failure, components hot-swap without needing tools
· Two 4G-Fibre Channel host ports, one SAS wide expansion port(s) per controller
· Supports 4 expansion JBODs (VTJ610sD)
· Multi-host and cluster ready!
· Comprehensive embedded web-based management via Ethernet (out of band)
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Bay Provided
Form Factor: 3.5"
Form Factor (metric): 8.9 cm
Free Qty: 16
Total Qty: 16
Type: Hot-swap
Environmental Parameters
Max Operating Temperature: 104 °F
Min Operating Temperature: 41 °F
Header
Compatibility: Mac , PC
Manufacturer: Promise Technology
Model: E610fD
Packaged Quantity: 1
Product Line: Promise VTrak
Interface Provided
Interface (Storage): 4Gb Fibre Channel
Qty: 4
Interface (Storage): Serial Attached SCSI
Qty: 2
Connector Type: RJ-45
Interface (Storage): Ethernet
Purpose Location (Storage): Management
Connector Type: RJ-11
Interface (Storage): Serial
Miscellaneous
Compliant Standards: BSMI , C-Tick , CB , CE , cUL , FCC Class A certified , MIC , RoHS , TUV , VCCI
Height (Rack Units): 3
Power Device
Form Factor: Plug-in module
Frequency Required: 50/60 Hz
Installed Qty: 2
Nominal Voltage: AC 120/230 V
Power Provided: 500 Watt
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Type: Power supply - hot-plug
Service
Support Details Full Contract Period: 3 years
Support Details Type: Limited warranty
Support Details Service Included: Phone consulting
Support Details Type: Technical support
Support Details Service Included: E-mail consulting
Support Details Type: Product info support
Storage
HDD Array External Interface: 4Gb Fibre Channel
HDD Array External Interface Class: Fibre Channel
Host Channels: 4
Rack-mountable: Rack-mountable
Type: Hard drive array
Storage Controller
Buffer Size: 512 MB
Channel Qty: 2
Controller Interface Type: Serial ATA-300 / SAS
Data Transfer Rate: 300 MBps
Form Factor: Plug-in module
Installed Qty: 2
Interface Type: 4Gb Fibre Channel
Max Buffer Size: 2 GB
Max Storage Devices Qty: 16
RAID Level: RAID 0 , RAID 1 , RAID 10 , RAID 1E , RAID 5 , RAID 50 , RAID 6 , RAID 60
Supported Devices: Disk array (RAID)
Type: RAID
Storage Controller (2nd)
Type: None
Storage Hard Drive
Enclosure Type: Plug-in module
Installed Qty: 0
Type: Hot-swap
Storage Hard Drive (2nd)
Type: None
Dimensions & Weight
Depth: 22.1 in
Height: 5.2 in
Weight: 67.2 lbs
Width: 17.6 in
Service & Support
Type: 3 years warranty
Cabinet (Chassis)
Supported Devices Modules Qty: 16
Supported Interface: Serial ATA-300 / SAS
System Requirements
Min Operating System: Microsoft Windows Server 2003 , Red Hat Linux , SuSe Linux
