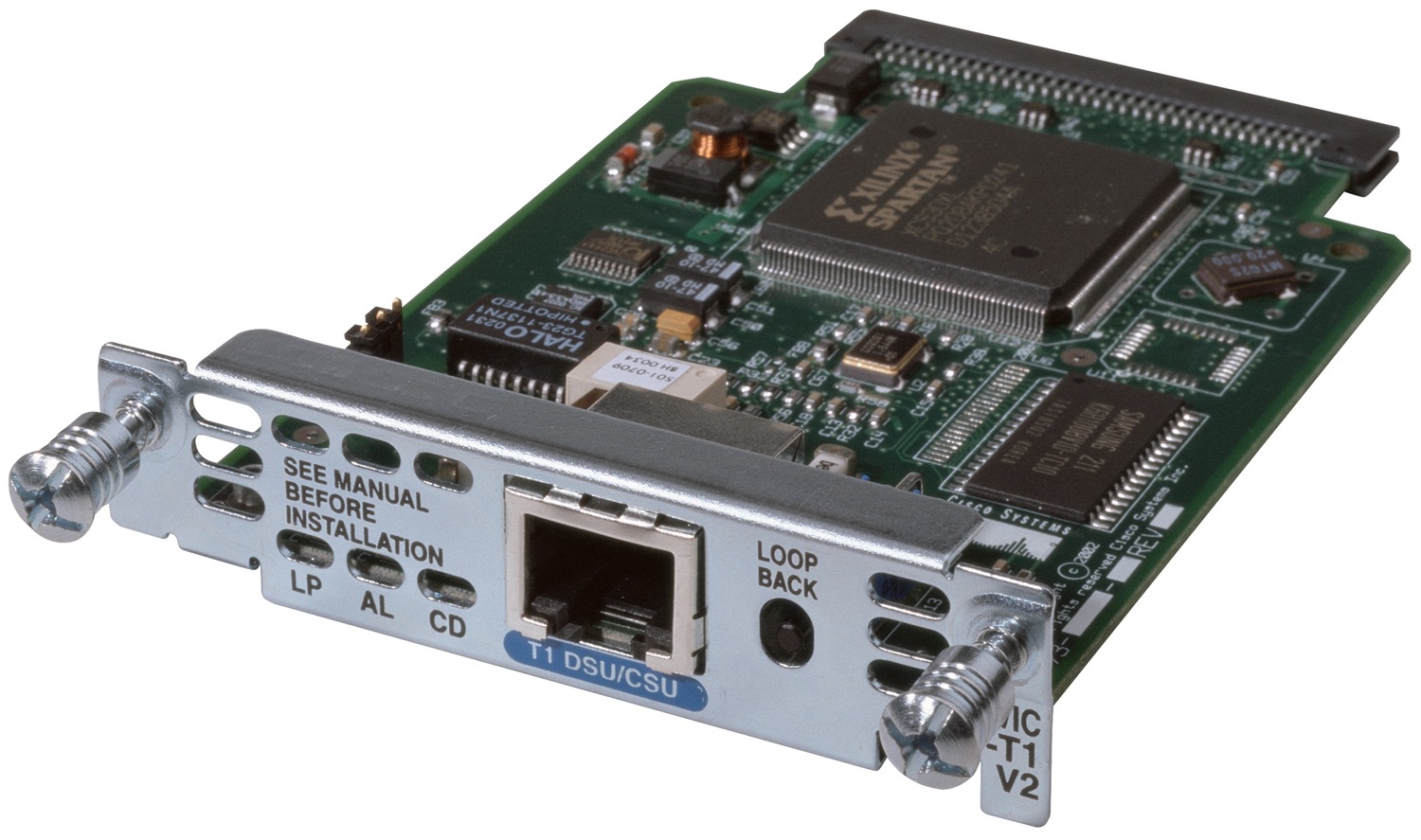

Cisco Updated one-port T1/fractional T1 DSU/CSU WIC View Photo Gallery

Cisco Updated one-port T1/fractional T1 DSU/CSU WIC

Mfg. Part: WIC-1DSU-T1-V2  |  CDW Part: 1261506  |  UNSPSC: 43222611
This product was discontinued as of Monday, October 12, 2009. Call for availability.
Log On to Email this Page or
Add to Favorites.




Updated one-port T1/fractional T1 DSU/CSU WIC
Main Features
Product Overview
Technical Specs
Product Overview
Main Features
  • Updated one-port T1/fractional T1 DSU/CSU WIC
The updated Cisco® T1 data service unit/channel service unit (DSU/CSU) WAN Interface Card (WIC) is an integrated, fully managed DSU/CSU for T1 or fractional T1 service. The WIC-1DSU-T1-V2 is an updated version of the WIC-1DSU-T1, offering additional supported features with the same performance.

The Cisco T1 DSU/CSU WIC is supported on the Cisco 1700 Series, 2600XM Series, 3631, and 3700 Series routers, and Cisco ICS 7750 Software. It provides a cost-effective router-DSU/CSU combination with the following benefits of integration:

• Fewer devices and cables to deploy and manage

• Remote and local configuration, monitoring, and troubleshooting via the Cisco IOS® Software CLI and Simple Network Management Protocol (SNMP)

• Flexibility and investment protection

• Single-vendor support

• Enhanced reliability

• Physical space savings

Features:
• T1 or fractional T1 network interface

• Wet T1 support (not available on WIC-1DSU-T1)

• N x 64kbps or N x 56kbps nonchannelized data rates (N = 1 to 24)

• Standards-based, including ANSI T1.403 and AT&T Publication 62411

• Full management features:

–Configuration-Capability for remote configuration via Telnet from Cisco IOS CLI.

–Monitoring-Router and DSU/CSU are manageable as a single SNMP entity; extensive DSU/CSU statistics are provided by the Cisco IOS CLI.

–Troubleshooting-Extensive loopbacks (including manual button for network line loopback), bit error rate tester (BERT) test patterns, alarm counters, and performance reports, all of which are accessible from Cisco IOS CLI. LEDs for carrier detect, loopback, and alarm functions.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Miscellaneous
Compliant Standards: EN 60950 , FCC Class B certified , NEBS level 3 , UL 60950
Interface Provided
Connector Type: RJ-45
Interface: T1
Qty: 1
Type: Modem
Modem
Connectivity Technology: Wired
Enclosure Type: Plug-in module
Max Transfer Rate: 1.5 Mbps
Type: DSU/CSU
Battery
Type: None
Environmental Parameters
Humidity Range Operating: 10 - 85%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Compatibility: PC
Manufacturer: Cisco Systems
Packaged Quantity: 1
Product Line: Cisco
Line Properties
Framing Format: ANSI T1.403 , D4 , ESF , SF
Line Coding Format: AMI , B8ZS
Line Rate: T-1
Power Device
Type: None
Slot Required
Total Qty: 1
Type: Expansion slot
Dimensions & Weight
Depth: 4.8 in
Height: 0.8 in
Weight: 2.2 oz
Width: 3.1 in
