All Categories  > Printers, Scanners & Print Supplies  > Laser Printers  > Xerox Phaser 7760YDN Laser Printer
Xerox Phaser 7760YDN Laser Printer View Photo Gallery
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT
Leasing FAQs

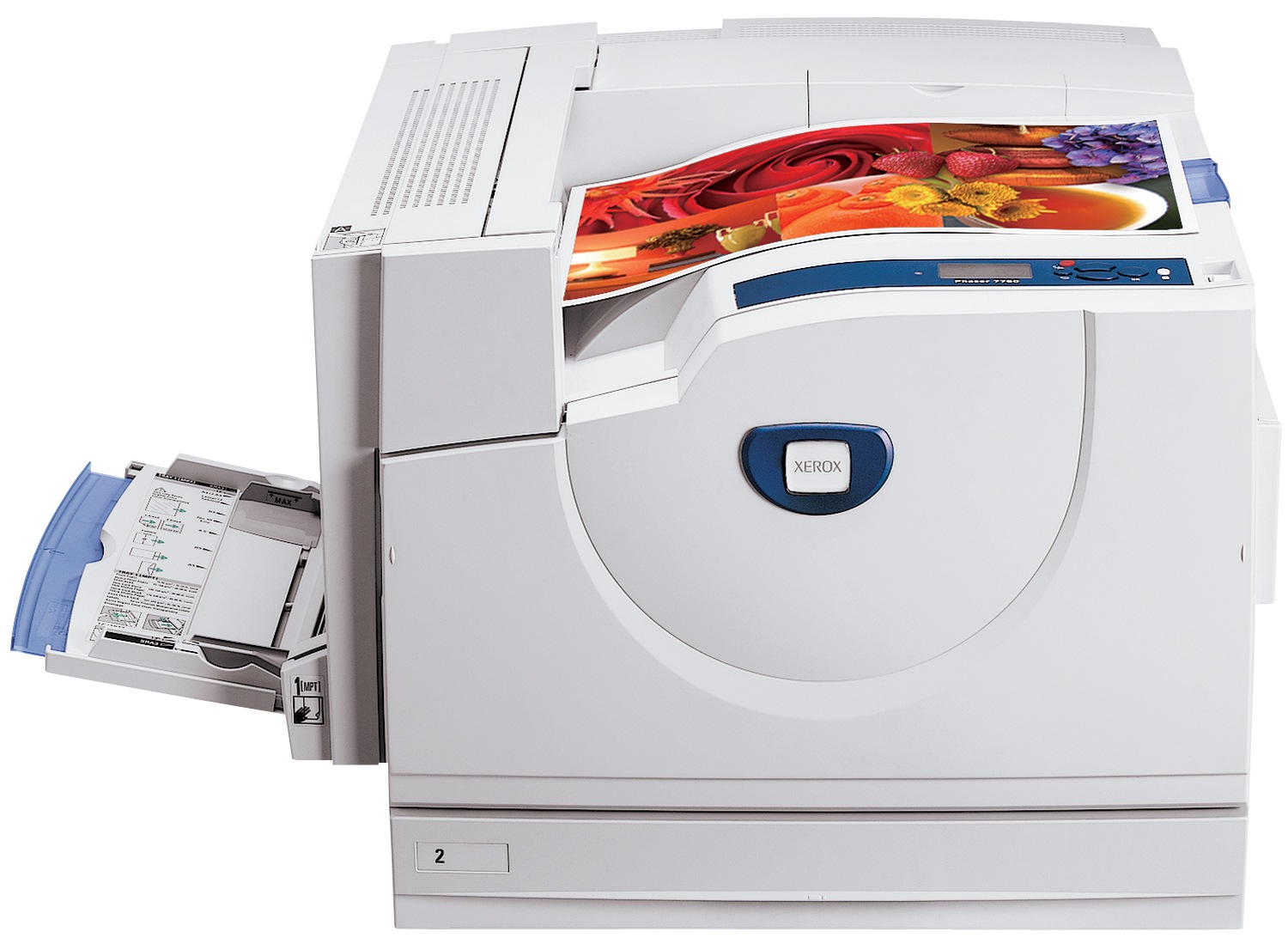

Xerox Phaser 7760YDN Laser Printer

Mfg. Part: 7760/YDN  |  CDW Part: 982849  |  UNSPSC: 43212105

This product was discontinued as of Friday, December 30, 2011. Call for availability.
Phaser 7760DN - 12 X 18 Color Printer - 1200 dpi - 35ppm Color / 45 ppm B&W - USB And Ethernet - 800 MHz Processor - 512 MB Memory - 2-Sided Printing - 40GB HD - Phasercal - Government Config
Main Features
Log On to Email this Page or
Add to Favorites.





Product Overview
Technical Specs
Accessories
Warranties and Services
Product Overview
Main Features
  • Phaser 7760DN
  • 12 X 18 Color Printer
  • 1200 dpi
  • 35ppm Color / 45 ppm B&W
  • USB And Ethernet
  • 800 MHz Processor
  • 512 MB Memory
  • 2-Sided Printing
  • 40GB HD
  • Phasercal
  • Government Config
Ideal printer for color critical applications Quick Facts
Color: up to 35 ppm
Black: up to 45 ppm
First-page-out time as fast as 9 seconds for color
1200 x 1200 dpi resolution plus photo mode
Maximum paper size: 11" x 17" and banners
Two finishing options available
Standard input capacity: 650 sheets
Maximum input capacity: 3,150 sheets
Automatic two-sided printing standard
10/100/1000BaseTX Ethernet connectivity standard
800 MHz processor
512 MB and 40 GB hard drive standard

Competitive Edge
Superior color accuracy and detail with 1200 x 1200 dpi printing

Unique color management tools dedicated to graphics-intensive users that the competition can't match

Faster print speeds in color and black and white than competitive products

Standard two-sided printing vs. optional for most competitive products

More finishing capabilities and choices than competitive products

Two-times the standard memory (512 MB) than competitive products

Heavier media capabilities than competitive products (up to 255 gsm)

True Adobe® PostScript® 3™ versus emulations on competitive products

Features for High-Quality Color
Smooth color transitions, especially on flesh tones using 600 x 600 x 4 dpi photo mode

Advanced color tools give graphics professionals the repeatability, accuracy, and overall color control they demand

Sharp black text on colored backgrounds, and colored text on black backgrounds, with Black Trapping feature

Accurately simulate output colors and edit automatic and custom settings with TekColor™ correction

Features that Save Time
Fast and easy installation allows you to go to the printer, touch a button, and let it install itself

Instant on-screen alert notification and help when a print
job needs attention

Automated online troubleshooting with PhaserSMART™ gets you back to work fast

Real-time paper tray status at your desktop and automatic paper tray selection eliminate guesswork
Energy/Environment standards
ENERGY STAR Qualified Yes
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Chassis
Built-In Devices (in Printer): Status LCD
Dimensions & Weight (Shipping)
Shipping Depth: 29.5 in
Shipping Height: 35 in
Shipping Weight: 242.5 lbs
Shipping Width: 30 in
Environmental Standards
ENERGY STAR Qualified: Yes
Printing System
Color Management Features: Apple ColorSync , Application-based color management , ICC Color Profiles , PANTONE Digital Color , PostScript CRD , sRGB , TekColor , Windows Image Color Management (ICM)
First Print Out Time B/W: 6 sec
First Print Out Time Color: 9 sec
Scanner
Type: None
Slot Provided
Total Qty: 2
Type: Memory
Slot Required
Type: None
Storage Hard Drive
Capacity: 40 GB
Bay Provided
Type: Internal
Copier
Type: None
Dimensions & Weight
Depth: 28.5 in
Height: 19.4 in, 33.7 in
Weight: 202.8 lbs, 291 lbs
Width: 25.4 in
Environmental Parameters
Humidity Range Operating: 10 - 85%
Max Operating Temperature: 89.6 °F
Min Operating Temperature: 50 °F
Sound Emission (Idle): 33 DBA
Sound Emission (Operating): 51 DBA
Header
Compatibility: Mac , PC , Unix
Manufacturer: Xerox Printers
Model: 7760DN , 7760DX
Packaged Quantity: 1
Product Line: Xerox Phaser
Interface Required
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Total Qty: 1
Type: Network
Connector Type: 4 pin USB Type B
Type: Hi-Speed USB
Miscellaneous
Compliant Standards: CE , CSA 22.2 No. 950 , EPA Energy Star , FCC Part 15 , UL 1950
Pricing Type: Government
TAA Compliant: Yes
Modem
Type: None
Networking
Connectivity Technology: Wired
Data Link Protocol: Ethernet , Fast Ethernet , Gigabit Ethernet
Type: Print server
Power Device
Form Factor: Internal
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120 V
Power Consumption Operational: 684 Watt
Power Consumption Stand by Sleep: 134 Watt
Type: Power supply
Printer
Connectivity Technology: Wired
Duplex Printout: Duplex
Envelope Sizes: Com-10 (4.13 in x 9.5 in) , International B5 (6.93 in x 9.83 in) , International C4 (9 in x 12.75 in) , International C5 (6.38 in x 9 in) , International C6 (4.5 in x 6.38 in) , International DL (4.33 in x 8.66 in) , Monarch (3.87 in x 7.5 in) , US No 10 (4.1 in x 9.5 in)
Interface: Ethernet 10Base-T/100Base-TX/1000Base-T , Hi-Speed USB , USB
Language Simulation: PCL 5C , PDF , PostScript 3
Max H-Document Size: 12.6 in
Max H-Resolution B/W: 1200 dpi
Max H-Resolution Color: 1200 dpi
Max Media Capacity: 3150 sheets
Max Media Size (Standard): ARCH B (12 in x 18 in) , Ledger B Size (11 in x 17 in)
Max Media Weight: 255 g/m2
Max Printing Speed (ppm): 45 ppm
Max Printing Speed Color (ppm): 35 ppm
Max V-Document Size: 47.2 in
Max V-Resolution B/W: 1200 dpi
Max V-Resolution Color: 1200 dpi
Media Handling: 150-sheet input tray , 2000-sheet input tray , 2x 500-sheet input trays , 500-sheet input tray
Media Sizes: 11.7 in x 17 in , 12 in x 47 in , 12.6 in x 47.2 in , 3.95 in x 5.5 in , 4 in x 5.5 in , 5.5 in x 7.2 in , A3 (11.7 in x 16.5 in) , A4 (8.25 in x 11.7 in) , A7 (2.9 in x 4.1 in) , ARCH B (12 in x 18 in) , B5 (6.93 in x 9.83 in) , Letter A Size (8.5 in x 11 in)
Media Type: Banner paper , Bond paper , Envelopes , Plain paper
Min Media Weight: 75 g/m2
Monthly Duty Cycle: 150000 pages
Monthly Duty Cycle Range (Printer Class): 100,000 pages and more
Output Type: Color
PostScript Support: Standard
Recommended Monthly Volume: 20000 pages
Technology: Laser
Total Media Capacity: 3150 sheets, 650 sheets
Type: Workgroup printer
Printer Fonts
Font Included Type: PostScript
Fonts Included Qty: 137
Font Included Type: PCL
Fonts Included Qty: 81
Printer Media
Max Media Weight: 220 g/m2
Media Feeder Capacity: 500 sheets
Media Feeder Max Format: 11.7 in x 17 in
Media Feeder Qty: 1
Media Load Type: Autoload
Min Media Weight: 75 g/m2
Max Media Weight: 255 g/m2
Media Feeder Capacity: 150 sheets
Media Feeder Max Format: 12.6 in x 47.2 in
Media Feeder Max Format: Ledger B Size (11 in x 17 in)
Media Feeder Capacity: 2000 sheets
Media Feeder Max Format: Letter A Size (8.5 in x 11 in)
Printer Output
Max Speed: 45 ppm
Output Quality: B/W
Max Speed: 35 ppm
Output Quality: Color
Processor
Clock Speed: 800 MHz
RAM
Installed Size: 512 MB
Max Supported Size: 1 GB
Service
Support Details Full Contract Period: 1 year
Support Details Location: On-site
Support Details Type: Limited warranty
Service & Support
Type: 1 year warranty
Software
Type: Drivers & Utilities , PhaserCal , PhaserMatch 4.0 , Xerox CentreWare
System Requirements
Min Operating System: Apple MacOS 9.x , Apple MacOS X 10.2 or later , DEC OpenVMS , HP-UX 11.x , IBM AIX 4.2 or later , Microsoft Windows 2000 , Microsoft Windows XP , Microsoft Windows XP 64-bit Edition , Novell NetWare 4.x , Novell NetWare 5.x , Novell NetWare 6.x , Red Hat Linux 5.2 or later , SCO Unix , SGI Irix , SunOS 4.x , SunSoft Solaris 2.4 or later
