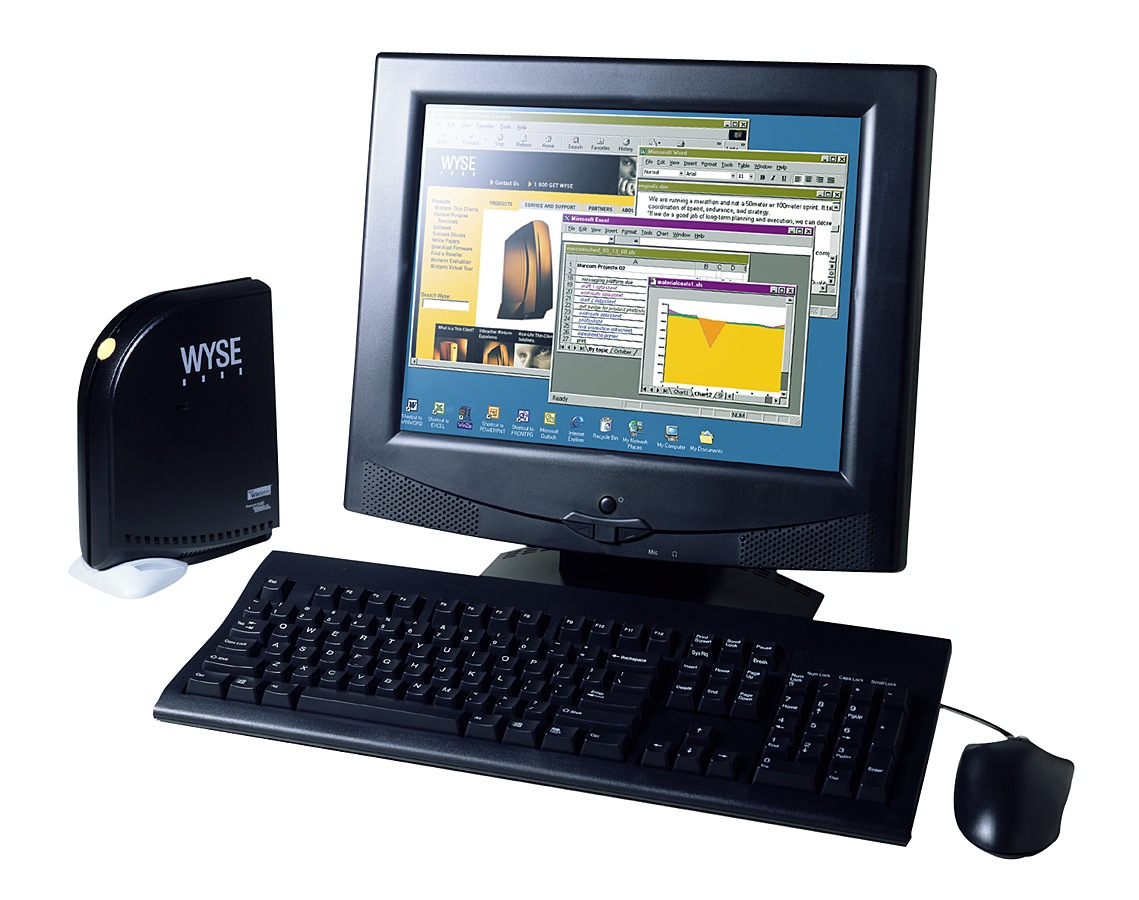

Wyse Winterm 9150SE View Photo Gallery
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT
Leasing FAQs

Wyse Winterm 9150SE

Mfg. Part: 902088-10   |  CDW Part: 780966  |  UNSPSC: 43211506

This product was discontinued as of Friday, April 20, 2007. Call for availability.
Geode GX Processor, 256MB RAM, No Hard Drive, 10/100 Ethernet, Microsoft® Windows® XP Embedded
Main Features





Product Overview
Technical Specs
Warranties and Services
Product Overview
Main Features
  • Geode GX Processor
  • 256MB RAM
  • No Hard Drive
  • 10/100 Ethernet
  • Microsoft® Windows® XP Embedded
The Wyse Winterm 9150SE is a high performance, yet affordable, small form factor Windows XP Embedded thin client in a solid, classic form factor with both legacy and high-speed I/O ports. The Winterm 9150SE supports a full local browser with multimedia and can run 32-bit, 16-bit, and Java local applications.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Processor
Manufacturer: AMD
Type: Geode GX
RAM
Installed Size: 256 MB
Technology: DDR SDRAM
OS Provided
Type: Microsoft Windows XP Embedded
Audio Input
Type: None
Audio Output
Max Sampling Rate: 48 kHz
Sound Output Mode: Stereo
Type: Sound card
Dimensions & Weight
Depth: 6.3 in
Height: 8.3 in
Display
Type: None.
Header
Compatibility: PC
Manufacturer: WYSE Technology
Model: 9150SE
Packaged Quantity: 1
Product Line: Wyse Winterm
Input Device
Type: Keyboard
Interface Provided
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX
Qty: 1
Type: Network
Connector Type: Mini-phone 3.5 mm
Interface: Input
Type: Microphone
Connector Type: Mini-phone stereo 3.5 mm
Interface: Output
Type: Headphones
Connector Type: 4 pin USB Type A
Qty: 4
Type: Hi-Speed USB
Connector Type: 15 pin HD D-Sub (HD-15)
Interface: VGA
Type: Display / video
Connector Type: 9 pin D-Sub (DB-9)
Interface: RS-232
Qty: 2
Type: Serial
Connector Type: 25 pin D-Sub (DB-25)
Interface: IEEE 1284 (EPP/ECP)
Type: Parallel
Connector Type: 6 pin mini-DIN (PS/2 style)
Interface: Generic
Type: Keyboard
Type: Mouse
Miscellaneous
Compliant Standards: C-Tick , CE , EN 60950 , FCC Class B certified , ISO 9241-3 , ISO 9241-8 , TUV GS , VCCI
Modem
Type: None
Networking
Data Link Protocol: Ethernet , Fast Ethernet
Features: DHCP support , Wake on LAN (WoL)
Type: Network adapter
Optical Storage
Type: None
Optical Storage (2nd)
Type: None
Power Device
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Type: Power adapter
Printer
Type: None
Software
Type: Citrix ICA , Drivers & Utilities , Microsoft Internet Explorer 6.0 , Microsoft RDP 5.2
Storage Controller (2nd)
Type: None
Storage Removable
Type: None
System
Hard Drive Capacity: 0 GB
OS Certified: Citrix Presentation Server , Citrix WinFrame , Microsoft Windows 2000 Server , Microsoft Windows NT Server 4.0 Terminal Edition , Microsoft Windows Server 2003
Type: Network computer
Video Input
Type: None
Video Output
Colors Max Resolution (external): 16-bit (64K colors)
Form Factor: Integrated
Max External Resolution: 1600 x 1200
Audio Output Details
Speaker Type: None
Chassis
Form Factor: Tower
Manufacturer Form Factor: Tower
Flash Memory
Installed Size: 512 MB
Hard Drive
Type: None.
Hard Drive (2nd)
Type: None
