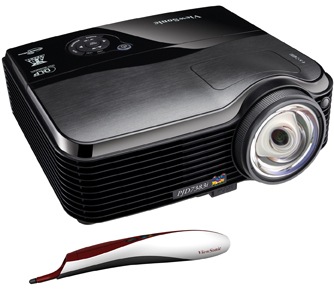

ViewSonic PJD7583wi Projector

Mfg. Part: PJD7583WI   |  CDW Part: 2255064  |  UNSPSC: 45111609

This product was discontinued as of Thursday, November 29, 2012. Call for availability.
3000 ANSI lumens, 2000:1 contrast ratio, DLP projector, 1280 x 800 max resolution, 7.7 lbs, Widescreen aspect ratio, 4000 hour(s) lamp life (up to), 3 year warranty
Main Features





Product Overview
Technical Specs
Accessories
Warranties and Services
Product Overview
Main Features
  • 3000 ANSI lumens
  • 2000:1 contrast ratio
  • DLP projector
  • 1280 x 800 max resolution
  • 7.7 lbs
  • Widescreen aspect ratio
  • 4000 hour(s) lamp life (up to)
  • 3 year warranty
The PJD7383i is an advanced interactive short throw DLP projector which includes BrilliantColor technology to produce more vibrant colors, while the high brightness and contrast ratios make this projector shine in virtually any lighting situation. The PJD7383i delivers 3000 lumens with a 1024 x 768 XGA native resolution. Priced at just a fraction of the cost of a traditional 77" interactive white board, the ViewSonic iProjector provides ultimate flexibility for interactive learning.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Audio Output
Output Power Channel: 10 Watt
Sound Output Mode: Mono
Type: Speaker(s)
Cable
Connectivity Details Type: VGA cable
Connectivity Details Type: USB cable
Cable Details
Included Qty: 1
Dimensions & Weight
Depth: 10 in
Height: 5 in
Weight: 7.7 lbs
Width: 11.4 in
Display
3D: Yes
Display Resolution Abbreviation: WXGA
Projector Image Brightness: 3000 ANSI lumens
Type: DLP projector
Display (Projector)
Image Contrast Ratio: 2000:1
Max Resolution: 1280 x 800
Environmental Parameters
Humidity Range Operating: 10 - 90%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Sound Emission: 32 dB
Sound Emission (Economic Mode): 27 dB
Header
Brand: ViewSonic
Compatibility: Mac , PC
Manufacturer: ViewSonic
Model: PJD7583wi
Packaged Quantity: 1
Product Line: ViewSonic
Interface Provided
Connector Type: 15 pin HD D-Sub (HD-15)
Interface (Output): VGA input
Qty: 2
Interface (Output): VGA output
Qty: 1
Connector Type: RCA
Interface (Output): Composite video input
Connector Type: 4 pin mini-DIN
Interface (Output): S-video input
Connector Type: Mini-phone 3.5 mm
Interface (Output): Audio line-in
Interface (Output): Audio line-out
Connector Type: 9 pin mini-DIN
Interface (Output): Remote control
Connector Type: RJ-45
Interface (Output): Microphone input
Miscellaneous
Color: Black
Compliant Standards: C-Tick , CB , cUL , EK , FCC , GOST-R , NOM , PSB , RoHS , SASO , TUV GS , UL , WEEE
Included Accessories: Digital presentation pen , Remote control
Product Color: Black
Networking
Connectivity Technology: Wired
Data Link Protocol: Ethernet
Wired Protocol: Ethernet
Power Device
Form Factor: Internal
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Power Consumption Operational: 329 Watt
Power Consumption Stand by Sleep: 1 Watt
Type: Power adapter
Projector
3D: Yes
Brightness: 3000 ANSI lumens
Class: Digital projector
Contrast Ratio: 2000:1
Controls & Adjustments: Aspect control , Brightness , Color balance , Color temperature , Contrast , Gamma correction , H/V position , Keystone correction , Saturation , Sharpness , White balance
Display Resolution Abbreviation: WXGA
Dynamic Contrast Ratio: 3000:1
Native Aspect Ratio: Widescreen
Native Resolution: 1280 x 800
Portability: Non-portable
Projector Features: BrilliantColor , Crestron RoomView , DLP 3D Ready , Eco-Mode technology
Recommended Use: Presentation and multimedia
Type: DLP projector
Projector Lamp
Lamp Capacity: 210 Watt
Lamp Life Cycle: 4000 hour(s)
Lamp Life Cycle (Economic Mode): 6000 hour(s)
Projector Lens System
Focus Type: Manual
Keystone Correction Direction: Vertical
Keystone Correction Type: Digital
Lens: Short-throw fixed lens
Vertical Keystone Correction: -40 / +40
Service
Support Details Full Contract Period: 3 years
Support Details Service Included: Parts
Support Details Type: Limited warranty
Support Details Full Contract Period: 1 year
Service & Support
Type: 3 years warranty
Service & Support Details
Component: Lamp
Video Input
Analog Video Format: M-NTSC , NTSC , NTSC 3.58 , NTSC 4.43 , PAL , PAL 60 , PAL-B/G , PAL-D , PAL-H , PAL-I , PAL-M , PAL-N , SECAM , SECAM B/G , SECAM D/K , SECAM K1 , SECAM L
Analog Video Signal: Component video , Composite video , RGB , S-Video
Video Interfaces: Composite video , S-Video , VGA
Video Modes: 1080i , 480i , 480p , 576i , 576p , 720p
Video Output
Analog Video Signal: RGB
