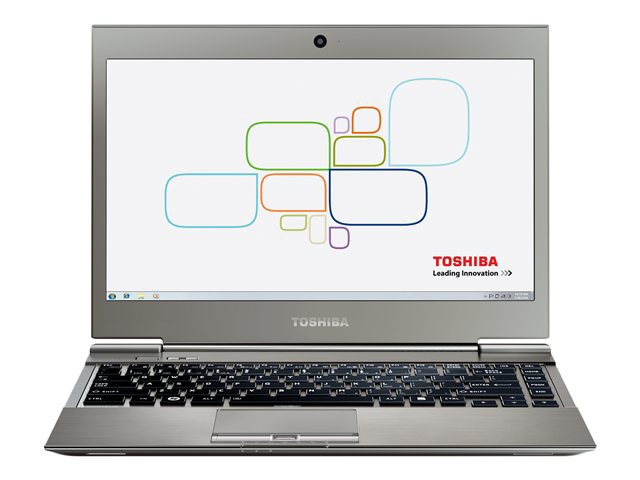

Toshiba Portégé Z830-S8301 - Core i5 2557M 1.7 GHz - 13.3" TFT

Mfg. Part: PT225U-004004|CDW Part: 2539219|UNSPSC: 43211503
  • S8301
  • Core i5 2557M / 2.7 GHz
  • RAM 4GB (Max 6 GB)
  • HDD 128GB SSD
  • QM67 Express Chipset with AMT 7.0
  • HD Graphics
  • 1.3 megapixel Webcam
  • 82579LM Gigabit Network Connection (10/100/1000)
  • Centrino® Advanced-N 6230 (a/g/n)
  • Bluetooth 3.0 plus HS
  • 1 x USB 3.0
  • 2 x USB 2.0
  • Fingerprint Reader
  • 13.3" Widescreen LED backlight TFT 1366 x 768 ( WXGA )
  • RoHS
[+] View all features
Availability:Call
Call for availability
CallCall


This item was discontinued on November 15, 2012.

Looking for a replacement? Consider...Toshiba Portégé Z30-A1302 - 13.3" - Core i7 4600U - Windows 7 Pro / 8.1 Pro$1,534.99Advertised Price

Sales Assistance

800.800.4239 Mon-Fri 7am-7:30pm CT

Answer within 24 hours.



Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT
Product Overview
Main Features
  • S8301
  • Core i5 2557M / 2.7 GHz
  • RAM 4GB (Max 6 GB)
  • HDD 128GB SSD
  • QM67 Express Chipset with AMT 7.0
  • HD Graphics
  • 1.3 megapixel Webcam
  • 82579LM Gigabit Network Connection (10/100/1000)
  • Centrino® Advanced-N 6230 (a/g/n)
  • Bluetooth 3.0 plus HS
  • 1 x USB 3.0
  • 2 x USB 2.0
  • Fingerprint Reader
  • 13.3" Widescreen LED backlight TFT 1366 x 768 ( WXGA )
  • RoHS
  • Energy Star Qualified
  • EPEAT™ Gold Rated
  • Ultimate Silver
  • 3 Year Standard Limited Warranty
No need to settle for mini ports. The designers had maxi in mind when they integrated a full-size ports and slots for maximum convenience. And talk about speed, Intel Core processor and a high-performance SSD drive give you super-fast booting times and the speed you need to clip through your applications. All is packed into a magnesium chassis with an internal honeycomb design for additional reinforcement.
Don't let the diminutive design of Portege Z830 leave you thinking you will lack power. When it comes to performance, these sleek, ultra-portables really get down to business. Intel Core processor gives you heavy-weight performance, and all feature Intel HD 3000 graphics to enhance video processing. And thanks to the super-fast yet and virtually silent flash SSD drive, booting and loading programs are speedier than ever.
Energy/Environment standards
ENERGY STAR Qualified Yes
EPEAT Compliant Yes
EPEAT Level EPEAT Gold
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Processor
64-bit Computing: Yes
Clock Speed: 1.7 GHz, 2.7 GHz
Features: Execute Disable Bit capability , Intel Turbo Boost Technology 2.0
Generation: 2
Manufacturer: Intel
Max Turbo Speed: 2.7 GHz
Number of Cores: Dual-Core
Processor Number: I5-2557M
Type: Core i5

Networking
Compliant Standards: Wi-Fi CERTIFIED
Data Link Protocol: Bluetooth 3.0 HS , Ethernet , Fast Ethernet , Gigabit Ethernet , IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n
Features: Intel Wireless Display (WiDi)
Type: Network adapter
Wired NIC: Intel 82579LM
Wired Protocol: Gigabit Ethernet
Wireless NIC: Intel Centrino Advanced-N 6230
Wireless Protocol: 802.11n , Bluetooth 3.0 , Bluetooth 3.0 HS

Storage Hard Drive
Capacity: 128 GB
Interface Type: SATA

OS Provided
Edition: Windows 7 Professional
Family: Windows 7
Type: Microsoft Windows 7 Professional , Microsoft Windows 7 Professional (32/64 bits)

Audio Input
Type: Microphone

Audio Output
Features: MaxxAudio 3
Type: Sound card , Stereo speakers

Battery
Capacity: 47 Wh
Cells: 6-cell , 8-cell
Installed Qty: 1
Run Time (Up To): 8.25 hour(s), 8.3 hour(s)
Technology: Lithium ion

Card Reader
Supported Flash Memory: microSD , miniSD , SD Memory Card , SDHC Memory Card
Type: 5 in 1 card reader , Card reader

Display
Diagonal Size (metric): 33.8 cm
Display Resolution Abbreviation: HD
Image Aspect Ratio: 16:9
LCD Backlight Technology: LED backlight
Technology: TFT active matrix
Type: LED
Widescreen Display: Yes

Environmental Parameters
Humidity Range Operating: 20 - 80% (non-condensing)
Max Operating Temperature: 95 °F
Min Operating Temperature: 41 °F

Header
Brand: Toshiba
Compatibility: PC
Country Kits: United States
Manufacturer: Toshiba
Model: Z830-S8301
Packaged Quantity: 1
Product Line: Toshiba Portégé

Input Device
Features: ECO button , Multi-touch touchpad , Spill-resistant
Type: Backlit keyboard , Touchpad

Interface Provided
Connector Type: RJ-45 , USB
Interface: Bluetooth , HDMI , Line-in/microphone , Line-out/headphones , RGB , SuperSpeed USB , USB 2.0

Mainboard
Chipset Type: Mobile Intel QM67 Express
Data Bus Speed: 1333 MHz

Miscellaneous
Color: Silver , Ultimate silver, black keyboard
Compliant Standards: RoHS
Features: Intel Active Management Technology (iAMT) , Security lock slot (cable lock sold separately) , Toshiba EasyGuard , USB Sleep-and-charge ports
Product Color: Silver

Modem
Type: None

Power Device
Form Factor: External
Frequency Required: 50/60 Hz
Nominal Voltage: AC 100 to 240 V , AC 120/230 V
Output Current: 2.37 A
Power Provided: 45 Watt
Voltage Provided: 19 V

Service
Support Details Full Contract Period: 3 years
Support Details Type: Limited warranty



Support Details Full Contract Period: 1 year

Service & Support Details
Component: Battery

Software
Microsoft Office Preloaded: Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Type: Adobe Acrobat Reader , Adobe Flash Player , Face Recognition software , Google Chrome , Google Toolbar , Intel Wireless Display Technology 2.1 , Microsoft Internet Explorer 9.0 , Microsoft Office 2010 Starter , Microsoft Silverlight , Microsoft Windows Media Player 12 , Norton Internet Security 2012 (30 days trial) , Skype , Toshiba App Place , Toshiba Assist , Toshiba Book Place , Toshiba Bulletin Board , Toshiba Device Access Control , Toshiba Disc Creator , Toshiba Eco Utility , Toshiba Fingerprint Utility , Toshiba Hardware Setup Utility , Toshiba HDD/SSD Alert , Toshiba Media Controller , Toshiba Online Backup (30 days trial) , Toshiba Password Utility , Toshiba PC Health Monitor , Toshiba Recovery DiskCreator , Toshiba ReelTime , Toshiba Resolution+ , Toshiba Security Assist , Toshiba Service Station , Toshiba Sleep Utility , Toshiba Value Added Package , Toshiba Web Camera Application , Windows Live Essentials , Windows Live Mail , Windows Live Messenger , Windows Live Movie Maker , Windows Live Photo Gallery , Windows Live Writer

Storage Controller
Serial ATA Interface: Serial ATA-300
Type: Serial ATA

System
Embedded Security: Trusted Platform Module (TPM 1.2) Security Chip
Hard Drive Capacity: 128 GB
Notebook Type: Notebook , Ultrabook
Security Devices: Fingerprint reader

Video Output
Graphics Processor Vendor: Intel HD Graphics , Intel HD Graphics 3000

RAM
Configuration Features: 1 x 2 GB + 2 GB (soldered)
Empty Slots: 0
Installed Size: 4 GB, 4GB
Max Supported Size: 6 GB
Memory Speed: 1333 MHz
Slots Qty: 1
Technology: DDR3 SDRAM

Dimensions & Weight
Depth: 8.9 in
Height: 0.6 in
Weight: 2.5 lbs
Width: 12.4 in

Optical Storage
Type: None

Service & Support
Type: 3 years warranty

Display (Projector)
Diagonal Size: 13.3 in
Max Resolution: 1366 x 768

Hard Drive
Serial ATA Interface: Serial ATA-300
Type: Solid state , SSD

Cache Memory
Installed Size: 3 MB
Type: L3 cache

Environmental Standards
ENERGY STAR Qualified: Yes
EPEAT Compliant: Yes
EPEAT Level: EPEAT Gold

Interfaces
Interface: VGA



Interface: LAN



Interface: Microphone input



Interface: Headphone output



Interface: USB 2.0
Qty: 2



Interface: USB 3.0



Interface: HDMI

Notebook Camera
Integrated Webcam: Yes
Resolution (MP): 1.3 Megapixel

Video Memory
Max Allocated RAM Size: 1696 MB
Memory Allocation Technology: Dynamic Video Memory Technology
