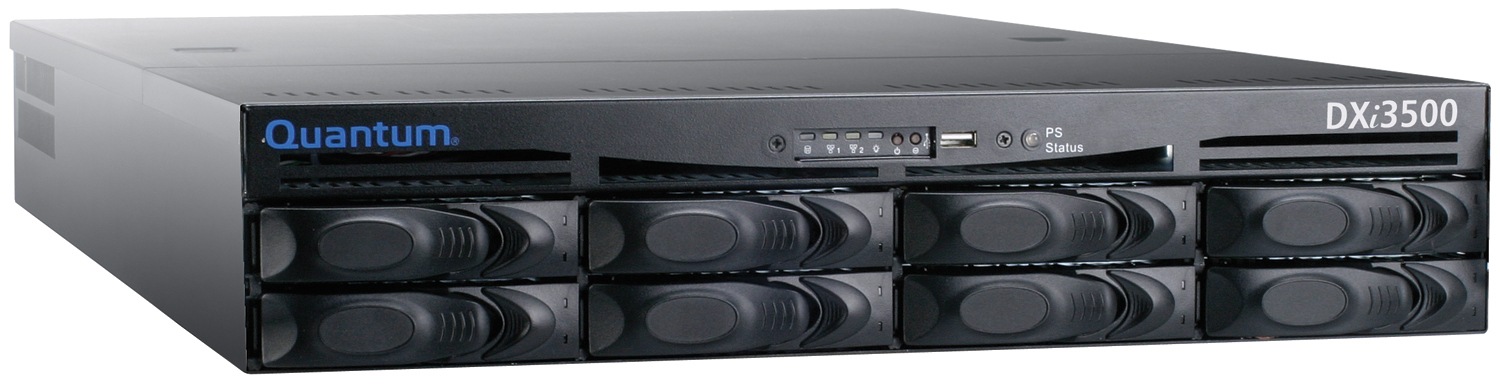

Quantum DXi3500 Data De-duplication Disk Backup and Replication Appliance

Mfg. Part: DDY35-CDCN-018A   |  CDW Part: 1138248  |  UNSPSC: 43211501

This product was discontinued as of Wednesday, March 10, 2010. Call for availability.
Data de-duplication, virtual library and NAS interface, 1.8 TB usable capacity, 18 to 90 TB retention capacity, iSCSI, 2U, upgradeable, StorageCare Guardian; Fibre Channel and replication options.
Main Features





Product Overview
Technical Specs
Product Overview
Main Features
  • Data de-duplication
  • virtual library and NAS interface
  • 1.8 TB usable capacity
  • 18 to 90 TB retention capacity
  • iSCSI
  • 2U
  • upgradeable
  • StorageCare Guardian; Fibre Channel and replication options.
DXi-Series disk-backup appliances with data de-duplication technology--increase the capacity of disk to retain backup data by 10 to 50 times and make replication practical for DR protection. Quantum’s DXi-Series disk backup and replication appliances use Quantum’s data de-duplication technology to expand the amount of backup data users can retain on fast-recovery RAID systems by 10 to 50 times, and to make remote replication a practical tool for DR protection. The result is a cost-effective way for IT departments to store backup data on disk for months instead of days, providing high speed, reliable restores, increased recovery points, and reduced media management. For disaster recovery in distributed environments, the DXi-Series appliances make automated, WAN replication practical by dramatically reducing the bandwidth required to move backup data securely between sites. DXi-Series solutions are integrated appliances that are easy to install and use with all leading backup applications. They provide best-in-class performance and flexible, easy-to-use interface options including NAS, virtual library, and mixed presentations, along with Fibre Channel and iSCSI connectivity. DXi-Series appliances are part of a comprehensive set of backup solutions, serviced and supported by Quantum, the leading global specialist in backup, recovery, and archive.

Features & Benefits for DXi-Series Appliances:
• Patented data de-duplication technology increases backup data users can retain on disk by 10 to 50 times—for fast, reliable restores and longer retention windows
• Provides months of data retention for primary data stores from 250GB to more than 10 TB
• Automated replication dramatically reduces the bandwidth to replicate backup data between sites—for automated disaster recovery protection
• NAS and virtual library interface with GbE or Fibre Channel connectivity provides optimal combination flexibility, easy of use and performance
• High backup performance of up to 800GB per hour provides enterprise scale protection, even for tight backup windows
• Part of a comprehensive backup solution set, supported by Quantum, the leading specialist in backup, recovery, and archive and its StorageCare Guardian remote alerting and diagnostic system.
• Field upgradeable to 4.2TB useable capacity

Product requires: 2U rack space and DXi3500 Installation Service (SDY35-NSYS-000x). Disk-based Product System Integration Service (SDBBB-NSNS-PB0x) is recommended.

Ideal Backup for:
Email, databases, print and file data. Protects primary datasets from 750GB to 1.8TB—perfect for branch or remote offices.

What’s in the box:
DXi3500 disk-based, data de-deduplication-enabled backup appliance with 1.8TB native, usable capacity; iSCSI VTL and NAS interface. One 2U module with rackmount kit, redundant power supplies/fans. Dual two-Gb Fibre Channel ports, dual Gb Ethernet ports, hard drives, two NEMA 5-15 P to C13 power cords and library emulation software. Fibre Channel VTL license and replication license are add-on options. Field-upgradable to 4.2TB usable capacity.

Service and Support:
StorageCare Guardian remote monitoring and alerting standard. 1-year warranty includes on-site coverage--enhanced service options available.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Bay Provided
Free Qty: 4
Total Qty: 8
Type: Hot-swap
Chassis
Installed Devices Modules Qty: 4
Supported Devices Modules Qty: 8
Dimensions & Weight
Depth: 3.5 in
Height: 27 in
Weight: 50 lbs
Width: 19 in
Environmental Parameters
Humidity Range Operating: 20 - 80%
Max Operating Temperature: 86 °F
Min Operating Temperature: 50 °F
Hard Drive
Data Transfer Rate: 300 MBps
Installed Qty: 4
Type: Hot-swap
Hard Drive (2nd)
Type: None
Header
Compatibility: PC
Manufacturer: Qte
Model: DXi3500
Packaged Quantity: 1
Product Line: Quantum
Interface Provided
Connector Type: RJ-45
Interface (Storage): Ethernet 10Base-T/100Base-TX/1000Base-T
Qty: 2
Interface (Storage): 2Gb Fibre Channel
Connector Type: 6 pin mini-DIN (PS/2 style)
Interface (Storage): Keyboard
Purpose Location (Storage): Management
Qty: 1
Connector Type: 15 pin HD D-Sub (HD-15)
Interface (Storage): VGA
Connector Type: 25 pin D-Sub (DB-25)
Interface (Storage): Parallel (IEEE 1284)
Connector Type: 9 pin D-Sub (DB-9)
Interface (Storage): Serial
Miscellaneous
Compliant Standards: C-Tick , CB , CE , CISPR 22 , CSA 22.2 No. 60950 , EN 60950 , FCC Class A certified , FCC Part 15 , GS , ICES-003 , NEMKO , VCCI Class A ITE
Height (Rack Units): 2
Networking
Data Link Protocol: 2Gb Fibre Channel , Ethernet , Fast Ethernet , Gigabit Ethernet
Host Connectivity (for SD): Gigabit Ethernet / 2Gb Fibre Channel
Network Services Compatibility: Microsoft CIFS , Network File System (NFS)
Network Transport Protocol: iSCSI
Type: Network adapter
Optical Storage
Type: None
Optical Storage (2nd)
Type: None
Power Device
Form Factor: Plug-in module
Frequency Required: 50/60 Hz
Installed Qty: 2
Max Supported Qty: 2
Nominal Voltage: AC 120/230 V
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Type: Power supply - hot-plug
Service
Support Details Full Contract Period: 1 year
Support Details Service Included: Replacement
Support Details Type: Limited warranty
Support Details Full Contract Period: 90 days
Support Details Service Included: Phone consulting
Support Details Type: Technical support
Service & Support
Type: 1 year warranty
Service & Support Details
Response Time: Next business day
Storage
iSCSI support: iSCSI
Rack-mountable: Rack-mountable
Total Storage Capacity: 1.8 TB
Type: NAS server
Storage Controller
Controller Interface Type: Serial ATA-300
RAID Level: RAID 5
Supported Devices: Disk array (RAID)
Type: RAID
Storage Hard Drive
Capacity: 750 GB
Interface Type: Serial ATA-300
Storage Removable
Type: None
Video Output
Type: None
