All Categories  > Computers  > Notebook Computers  > Panasonic Toughbook U1 Ultra - 5.6" - Atom Z530 - Windows 7 Professional /

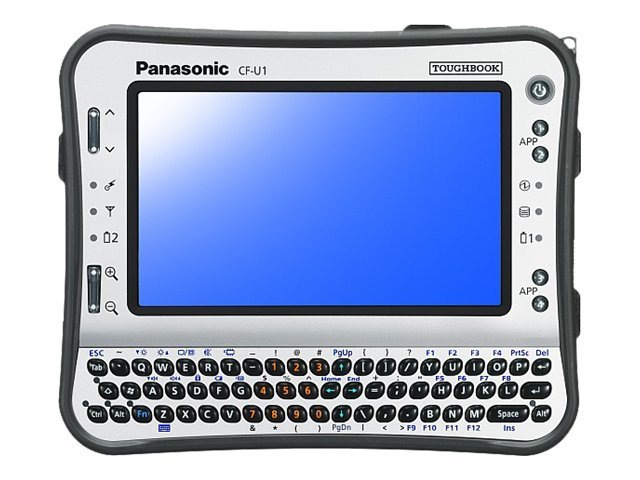

Panasonic Toughbook U1 Ultra - 5.6" - Atom Z530 - Windows 7 Professional / View Photo Gallery
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT
Leasing FAQs

Panasonic Toughbook U1 Ultra - 5.6" - Atom Z530 - Windows 7 Professional /

Mfg. Part: CF-U1GQG2G2M   |  CDW Part: 2626046  |  UNSPSC: 43211513

This product was discontinued as of Tuesday, November 20, 2012. Call for availability.
Atom Z530 / 1.6 GHz - Windows 7 Professional / XP Professional downgrade - pre-installed: Windows XP - 2 GB RAM - 64 GB SSD - 5.6" wide 1024 x 600 - Intel GMA 500 - 3G with Toughbook Preferred
Main Features





Product Overview
Technical Specs
Accessories
Warranties and Services
Product Overview
Main Features
  • Atom Z530 / 1.6 GHz
  • Windows 7 Professional / XP Professional downgrade
  • pre-installed: Windows XP
  • 2 GB RAM
  • 64 GB SSD
  • 5.6" wide 1024 x 600
  • Intel GMA 500
  • 3G with Toughbook Preferred
As the world's first ruggedized ultra-mobile PC, the Toughbook U1 Ultra combines maximum functionality and connectivity in a compact size, with extreme durability. A powerful solution for an ultra-mobile PC, the U1 Ultra comes with a solid state drive and the Intel Atom processor. In addition, the Panasonic Tougbook U1 Ultra is ultra-rugged, four-foot-drop approved and provides a sealed, all-weather design. The U1 Ultra also features integrated Wi-Fi; USB and SD card slots; backlit QWERTY keyboard and a 5.6" WSVGA sunlight-viewable touchscreen.

The Panasonic Toughbook U1 Ultra is a one-two punch of Toughbook ruggedness with hot-swappable twin batteries for full-shift productivity. Its convenient lightweight design is something other handhelds can't begin to imagine.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Cache Memory
Installed Size: 512 KB
Type: L2 cache
GPS System
Navigation: None
Hard Drive
Type: SSD
Interfaces
Interface: Headphone output
Interface: Microphone input
Interface: USB 2.0
Interface: Dock
Mobile Broadband
Generation: 3G
Service Activation: Yes
Supported Battery
Max Supported Qty: 2
Video Memory
Max Allocated RAM Size: 256 MB
Memory Allocation Technology: Shared video memory (UMA)
Processor
Clock Speed: 1.6 GHz
Manufacturer: Intel
Processor Number: Z530
Type: Atom
Networking
Bluetooth Class: Class 1
Compliant Standards: IEEE 802.1x
Data Link Protocol: Bluetooth 2.1 EDR , IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n
Features: Gobi2000 Technology
Type: Network adapter
Wireless NIC: Intel WiFi Link 5100
Wireless Protocol: 802.11n , Bluetooth 2.1 EDR
Storage Hard Drive
Capacity: 64 GB
OS Provided
Edition: Windows 7 Professional , Windows XP Professional
Family: Windows 7 , Windows XP
Preinstalled OS: Windows XP
Type: Microsoft Windows 7 Professional / XP Professional downgrade
Audio Input
Type: None
Audio Output
Compliant Standards: High Definition Audio
Type: Sound card , Speaker
Battery
Capacity: 2900 mAh
Installed Qty: 2
Run Time (Up To): 9 hours
Technology: Lithium ion
Cabinet (Chassis)
Built-in Devices (AB): Bar code reader (2D)
Card Reader
Supported Flash Memory: SD Memory Card , SDHC Memory Card
Type: Card reader
Display
Diagonal Size (metric): 14.2 cm
Display Resolution Abbreviation: WSVGA
LCD Backlight Technology: LED backlight
Projector Monitor Features: Ambient light sensor , Anti-glare , Anti-reflective , Sunlight readable , TransflectivePlus
Technology: TFT active matrix
Type: LED
Widescreen Display: Yes
Header
Brand: Panasonic
Compatibility: PC
Manufacturer: Panasonic Notebooks
Model: U1 Ultra
Packaged Quantity: 1
Product Line: Panasonic Toughbook
Input Device
Features: Programmable buttons , Volume control , Zoom button
Type: Backlit keyboard , Scroll button , Stylus , Touch-screen
Mainboard
Data Bus Speed: 533 MHz
Miscellaneous
Compliant Standards: ACPI , AES , CCX V4 , MIL-STD 810G
Features: 2 security lock slots (cable lock sold separately) , Administrator password , Anti-vibration , Circular polarizing , Drop resistant , Dust resistant , Hard drive password , Hot-swappable battery , Pivoting hand strap , Reinforced locking port covers , Shock resistant , System password , Water resistant
Modem
Cellular Network Supported: Yes
Type: Wireless cellular modem
Power Device
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Service
Support Details Full Contract Period: 3 years
Support Details Service Included: Phone consulting
Support Details Type: Technical support
Support Details Type: Recycling
Support Details Service Included: Parts and labor
Support Details Service Included: Parts
Support Details Location: On-site
Support Details Service Included: Consulting
Support Details Type: Engineering service
Service & Support Details
Service Availability (Days a Week): Monday-Sunday
Service Availability (Hours a Day): 24 hours a day
Response Time: 2 days
Delivery & Returns Charges: Delivery and returns charges by manufacturer
Response Time: Next business day
Software
Type: Drivers & Utilities , Recovery DVD
System
Embedded Security: Trusted Platform Module (TPM 1.2) Security Chip
Hard Drive Capacity: 64 GB
Notebook Type: Ultra portable PC
Platform Technology: Ultra Mobile PC
Rugged Design: Yes
Video Output
Graphics Processor Vendor: Intel GMA 500
RAM
Installed Size: 2 GB
Technology: DDR2 SDRAM
Dimensions & Weight
Depth: 5.9 in
Height: 2.2 in
Weight: 2.3 lbs
Width: 7.2 in
Optical Storage
Type: None
Service & Support
Bundled Services: Toughbook Preferred
Type: 3 years warranty
Display (Projector)
Diagonal Size: 5.6 in
Max Resolution: 1024 x 600
