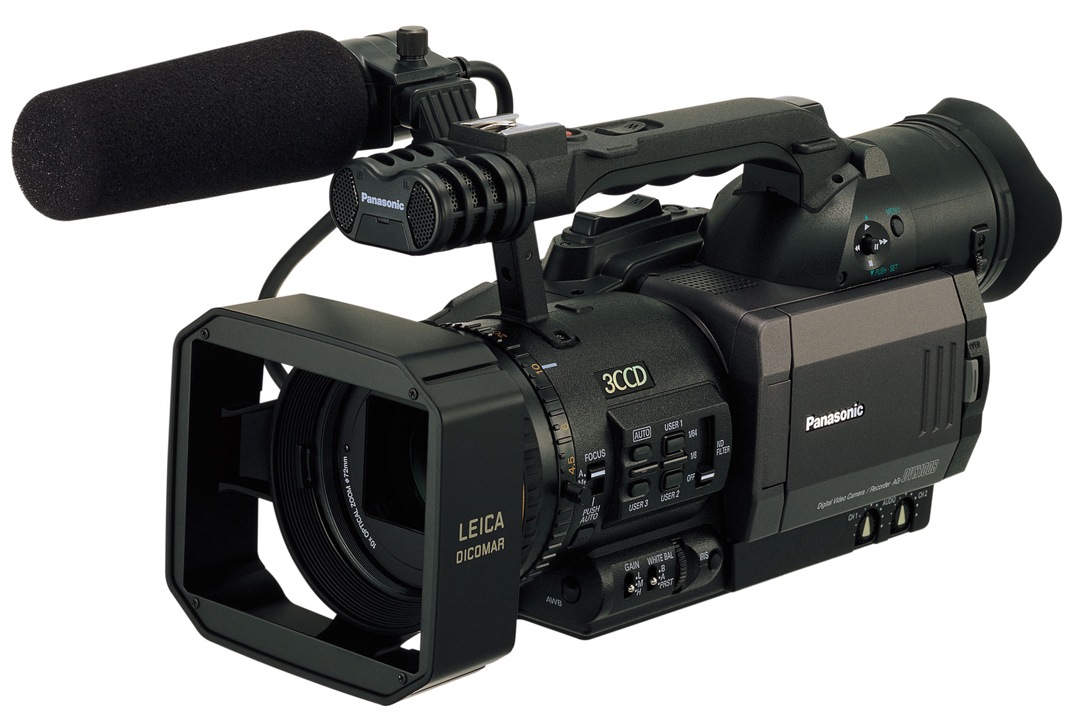

Panasonic AG DVX100B DV Camcorder

Mfg. Part: AG-DVX100BP   |  CDW Part: 864389  |  UNSPSC: 45121516

This product was discontinued as of Friday, January 01, 1999. Call for availability.
DVX100B, 410 Kilopixels, Optical zoom: 10 x, Mini DV
Main Features






Product Overview
Technical Specs
Product Overview
Main Features
  • DVX100B
  • 410 Kilopixels
  • Optical zoom: 10 x
  • Mini DV
Already used for film and TV program production as well as news gathering, Panasonic's DVX100 series has now evolved further with the AG-DVX100B. The AG-DVX100B debuts as the industry's first DV camera-recorder to allow camerato- camera time-code synchro and user-settable file transfer.

This allows the AG-DVX100B to be used for simultaneous multi-camera recording techniques often used in video production. Additionally the new model offers remote focus and iris control for easier operation when mounted on a jib arm or tripod. The Black Sapphire AG-DVX100B offers the acclaimed performance and multiple functions of previous high-end DV camera-recorders models. In addition to superior image quality, high sensitivity, 24P/30P Cinema mode and manual operation, it has the specifications needed for full-fledged professional video production.

The Leica Dicomar lens featured in the AG-DVX100B incorporates Leica optical technology and know-how. Use of low-dispersion glass reduces color aberration and increases resolution, while a multi-coating process minimizes flare and ghosting. The results are sharp, crisp, beautifully rendered images with delicate nuances and exceptional shading. The lens system features 15 lens elements in 11 groups, including three aspherical lenses. Panasonic's advanced OIS (Optical Image Stabilizer) drastically cuts the blurring caused by hand shake. Optical processing with an automatic correction function helps assure consistently clear, sharp images.

Panasonic designed the AG-DVX100B to deliver the highest sensitivity and picture quality in its class. At its heart is a 3CCD RGB system comprising three 1/3-inch, 410,000-pixel progressive CCDs developed especially for broadcast and professional applications. The innovative on-chip lens design achieves high F11 sensitivity, allowing the AG-DVX100B to record in light as dim as below three lux, for example, in nighttime news gathering. Picture quality is outstanding, with a high S/N ratio that means less noise in darker parts of the image and low smear that allows shooting in sunlight or under bright spotlights.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Auto Focus
System: TTL contrast detection
Digital Player (Recorder)
Type: None
Exposure Parameters
Exposure Modes: Automatic , Manual
Shooting Programs: Spotlight
Shutter
Camcorder Slow Shutter Modes: 1/12sec , 1/15sec , 1/30sec , 1/4sec , 1/6sec , 1/8sec
Max Shutter Speed: 1/2000 sec
Min Shutter Speed: 1/24 sec
White Balance
White Balance: Automatic , Custom , Presets
White Balance Presets: Indoor , Outdoor
Camcorder Features
DV input: Yes
Edit Functions: Audio dubbing
Low Lux Night Mode: Yes
Search Modes: Blank search , Index search
Time Code: Yes
Connections
Connector Type: 4 pin FireWire
Qty: 1
Type: IEEE 1394 (FireWire/i.LINK)
Connector Type: 4 pin mini-DIN
Type: S-Video input / output
Connector Type: RCA phono x 3
Type: Composite video/audio (input/output)
Connector Type: XLR x 2
Type: Audio line-in / microphone
Connector Type: Mini-phone stereo 3.5 mm
Type: Headphones
Type: Remote control
Type: DC power input
Lens System
Element Qty: 15
Features: Aspherical lens , Built-in 1/64 neutral density filter , Built-in 1/8 neutral density filter
Filter Size: 72 mm
Focal Length Equivalent to 35mm Camera: 32.5 - 325mm
Focus Adjustment: Automatic , Manual
Group Qty: 11
Lens Aperture: F/1.6
Lens Brand: Leica
Max Focal Length: 45 mm
Min Focal Length: 4.5 mm
Optical Zoom: 10
Type: Zoom lens
Zoom Adjustment: Manual , Motorized drive
Optical Sensor
Camcorder Effective Resolution (Video Mode): 380 Kpix
Camcorder Sensor Resolution: 410 Kpix
Optical Sensor Size: 1/3"
Optical Sensor Size (metric): 8.5 mm ( 1/3" )
Optical Sensor Type: 3CCD
Sensor Qty: 3 CCD
Video Input
Analog Video Format: NTSC
AV Interfaces: Composite video/audio , S-Video
Camcorder Type: Consumer
Color Support: Color
Digital Scene Transition: Black fader , White fader
Features: Accessories hot shoe , Backlight compensation , Built-in speaker , Display brightness control , Display contrast control
Media Type: Mini DV
Min Illumination: 3 Lux
Type: Camcorder
Video Recording Modes: LP , SP
Audio Input
Microphone Form Factor: Built-in
Microphone Operation Mode: Stereo
Type: Microphone
Battery
Battery Form Factor: Manufacturer specific
Camera Flash
Type: None
Carrying Case
Type: None
Display
Diagonal Size (metric): 8.9 cm
Display Form Factor: Rotating
Display Format: 210,000 pixels
Output Type: Color
Technology: TFT active matrix
Type: LCD display
Display (Projector)
Diagonal Size: 3.5 in
Environmental Parameters
Humidity Range Operating: 10 - 85%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Brand: Panasonic
Manufacturer: Panasonic Industrial
Model: AG-DVX100BP
Packaged Quantity: 1
Product Line: Panasonic DV PROLINE
Miscellaneous
Body Material: Magnesium alloy
Included Accessories: Camcorder shoulder strap , Eyecup , IR remote control , Lens cap , Lens hood , Microphone holder , Power adapter
Media Included Qty: 1
Optical System
Built-in Optical Image Stabilizer: Yes
Image Stabilizer: Optical
Power Device
Form Factor: External
Type: Power adapter
Remote Control
Technology: Infrared
Type: Remote control
Storage Floppy Drive
Type: None
Supported Battery Details
Details: Li-ion rechargeable battery
Included: Included
Quantity: 1
TV Tuner
Type: None
Viewfinder
Viewfinder Color Support: Color
Viewfinder Diagonal Size: 0.44 in
Viewfinder Diagonal Size (metric): 1.1 cm
Viewfinder Resolution: 235,000 pixels
Viewfinder Type: LCD
Dimensions & Weight
Depth: 14.3 in
Height: 6.3 in
Weight: 3.7 lbs
Width: 5.5 in
Service & Support
Type: 1 year limited warranty
