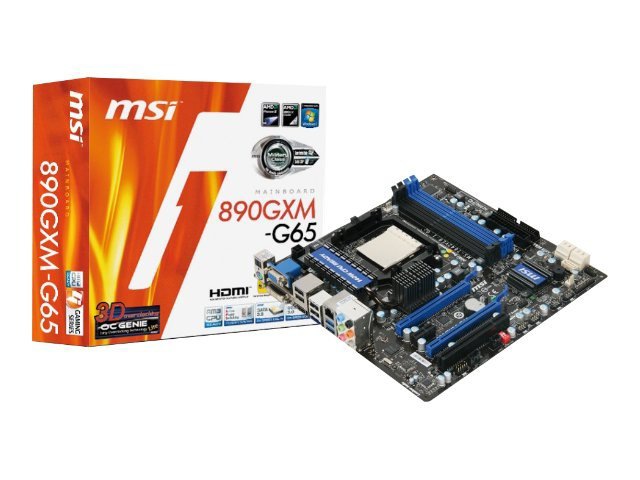

MSI 890GXM-G65 - motherboard - micro ATX - Socket AM3 - AMD 890GX

Mfg. Part: 890GXM-G65   |  CDW Part: 2367816  |  UNSPSC: 43201513

This product was discontinued as of Wednesday, September 26, 2012. Call for availability.
Motherboard - micro ATX - Socket AM3 - AMD 890GX - USB 3.0 - Gigabit LAN - onboard graphics - HD Audio (8-channel)
Main Features






Product Overview
Technical Specs
Product Overview
Main Features
  • Motherboard
  • micro ATX
  • Socket AM3
  • AMD 890GX
  • USB 3.0
  • Gigabit LAN
  • onboard graphics
  • HD Audio (8-channel)
Revolutionary SuperSpeed USB 3.0, 10x faster than USB 2.0

Up to 5Gbps bandwidth, boost data transfer rate between PC and USB device

Support next-generation SATA III, up to 6Gbps bandwidth

Double the data transfer rate of SATA II (3Gbps)

Supports 1080 Full-HD multimedia playback

A perfect connection to HD visual effects

Better casual gaming experience with DirectX 10 support

Support next-generation SATA III, up to 6Gbps bandwidth

Double the data transfer rate of SATA II (3Gbps)

Faster and Flexible and instant

If BIOS crash, it still can boot from USB Drive

Update BIOS from USB drive by M-flash fucntion

Equip with 2 or more PCIe x16 slots, ATI CrossFire Ready

The ultimate multi-GPU performance gaming platform

Provides 2.7x faster performance than single graphic card solution

Help end-users upgrade CPU FSB directly

Skip the complicated BIOS OC setting and enjoy the higher level CPU performance

Longer lifespan than electrolytic capacitors

Endurable to operation under higher frequency and temperature

Avoid exploding capacitors to cause mainboards failure

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Expansion Slots
Type: CPU
Type: DIMM 240-pin
Voltage: 1.5 V
Type: PCIe 2.0 x16
Type: PCIe x1
Type: PCI
Voltage: 3.3 V/ 5 V
Interfaces
Storage: ATA-133 , eSATA port , Serial ATA-600 (RAID)
Storage Ports Configuration: 1 x ATA, 5 x SATA, 1 x eSATA
SuperSpeed USB: Yes
USB 3.0 FireWire: USB 3.0
USB Ports Configuration: 14 x USB
Internal Interfaces
Connector Type: 4 pin MPC
Qty: 1
Type: Audio
RAM
Features: Dual channel memory architecture
Max Supported Size: 16 GB
Audio Output
Audio: High Definition Audio (8-channel)
Audio Codec: Realtek ALC889
Compliant Standards: High Definition Audio
Sound Output Mode: 7.1 channel surround
Type: Sound card
Header
Compatibility: PC
Manufacturer: MSI COMPUTER CORP
Model: 890GXM-G65
Packaged Quantity: 1
Product Line: MSI
Interface Provided
Qty: 1
Type: PS/2 keyboard / mouse
Qty: 4
Type: USB 2.0
Qty: 2
Type: USB 3.0
Type: LAN (Gigabit Ethernet)
Type: DVI-D
Type: HDMI
Type: VGA
Type: TOSLINK
Connector Type: Mini-jack
Type: Audio line-out
Type: Audio line-in
Type: Microphone
Type: Audio line-out (side surround)
Type: Audio line-out (rear)
Type: Audio line-out (center/subwoofer)
Mainboard
64-bit Processors Compatibility: Yes
Chipset Type: AMD 890GX
Compatible Processors: Athlon II X2 , Athlon II X3 , Athlon II X4 , Phenom II X2 , Phenom II X3 , Phenom II X4 , Sempron
Data Bus Speed: 2600 MHz
Form Factor: Micro ATX
I/O Controller: AMD SB850
Multi-Core Support: Dual-Core / Triple-core / Quad-core
Power Connectors: 24-pin main power connector , 4-pin ATX12V connector
Processor Socket: Socket AM3
RAM Slots: 4 DIMM slots
Supported RAM (Registered or Buffered): Unbuffered
Supported RAM Speed: 1066 MHz , 1333 MHz , 800 MHz
Supported RAM Standard: PC3-10600 , PC3-6400 , PC3-8500
Supported RAM Technology: DDR3 SDRAM
Mainboard Features
Additional Connectors (Optional): 8 x Hi-Speed USB
BIOS Features: M-Flash
Hardware Features: All-Solid Capacitor motherboard Design , AMD CrossFireX technology support , AMD Hybrid CrossFireX technology support , Chassis intrusion detection , Easy OC Switch , MSI Active Phase Switching (APS) , SidePort memory , USB Safeguard
Miscellaneous
Microsoft Certification: Compatible with Windows 7
Product Type: Motherboard
Modem
Type: None
Networking
Data Link Protocol: Ethernet , Fast Ethernet , Gigabit Ethernet
Network: Gigabit Ethernet
Network Controller: Realtek RTL8111DL
Type: Network adapter
Processor
Installed Qty: 0
Max Supported Qty: 1
Slot Provided
Total Qty: 1
Total Qty: 4
Total Qty: 2
Software
Software Included: MSI Live Update 4
Storage Interfaces
Chip: JMicron JMB368
Connector(s): 1 x 40pin IDC
Interface: ATA-133
Supported Devices Qty: 2
Chip: AMD SB850
Connector(s): 5 x 7pin Serial ATA
Interface: Serial ATA-600
RAID (Level): RAID 0 / RAID 1 / RAID 10 / RAID 5
Supported Devices Qty: 5
Connector(s): 1 x 7pin external SATA
Supported Devices Qty: 1
Video Memory
Installed Size: 128 MB
Technology: DDR3 SDRAM
Video Output
Graphics Processor Vendor: ATI Radeon HD 4290
Type: Graphics adapter
Dimensions & Weight
Depth: 9.6 in
Width: 9.6 in
