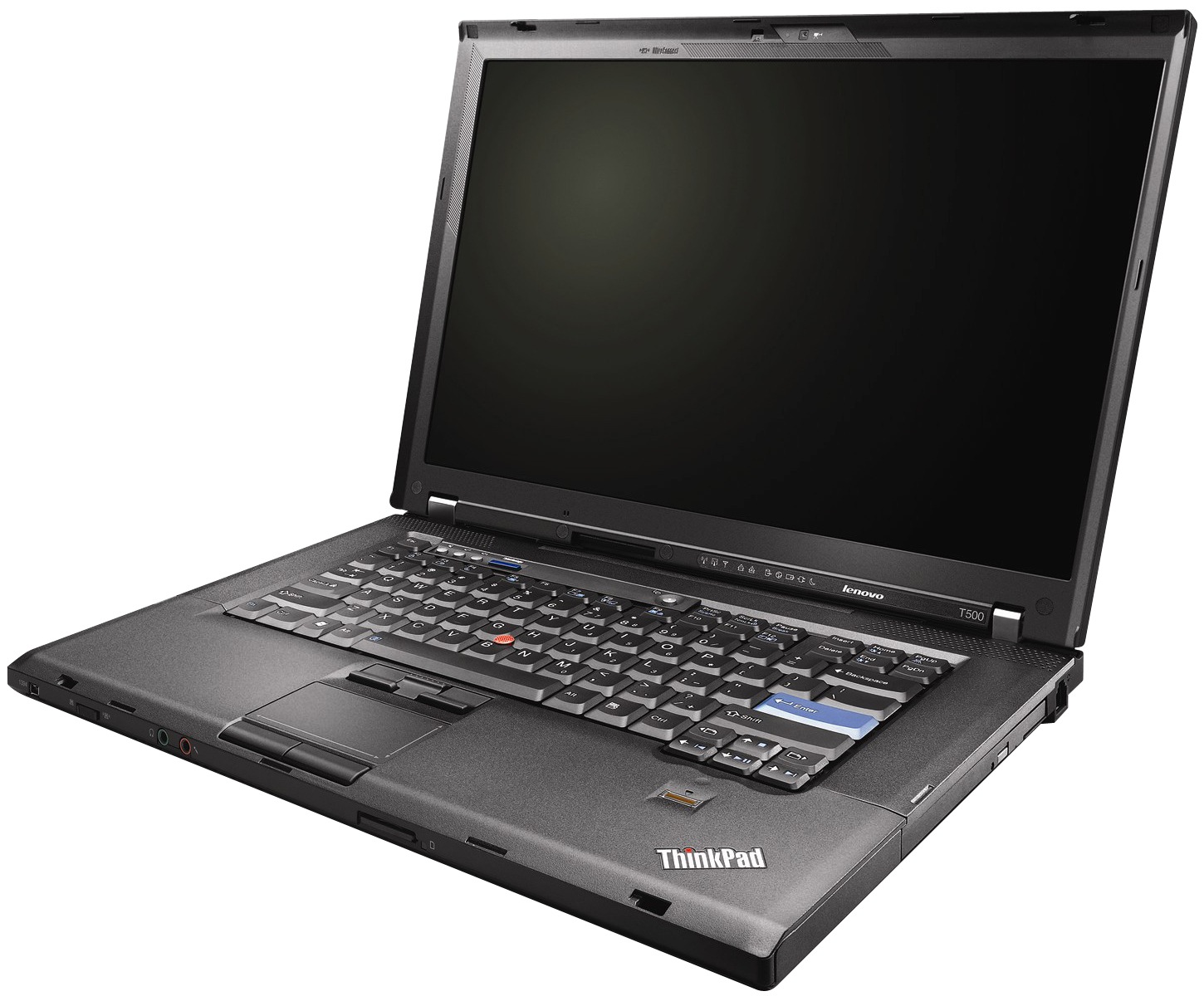

Lenovo ThinkPad T500 2242 - Core 2 Duo P8400 2.26 GHz - 15.4" TFT View Photo Gallery
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT

Lenovo ThinkPad T500 2242 - Core 2 Duo P8400 2.26 GHz - 15.4" TFT

Mfg. Part: 22425HU   |  CDW Part: 1630993  |  UNSPSC: 43211503

This product was discontinued as of Tuesday, January 12, 2010. Call for availability.
Core 2 Duo P8400 / 2.26 GHz - Centrino 2 - RAM 2 GB - HDD 160 GB - DVD±RW (±R DL) / DVD-RAM - GMA 4500MHD - cellular wireless ready - Gigabit Ethernet - WLAN : 802.11 a/b/g/n (draft), Bluetooth 2.0 - TPM - fingerprint reader - Vista Business / XP Pro ...
Main Features





Product Overview
Main Features
  • Core 2 Duo P8400 / 2.26 GHz
  • Centrino 2
  • RAM 2 GB
  • HDD 160 GB
  • DVD±RW (±R DL) / DVD-RAM
  • GMA 4500MHD
  • cellular wireless ready
  • Gigabit Ethernet
  • WLAN : 802.11 a/b/g/n (draft)
  • Bluetooth 2.0
  • TPM
  • fingerprint reader
  • Vista Business / XP Pro downgrade
  • pre-installed: Windows XP
  • 15.4" Widescreen TFT 1280 x 800 ( WXGA )
  • TopSeller
  • Microsoft Office Ready
ThinkPad T Series leads the way: best processors, fastest graphics, and durable, reliable data storage. It is why T Series notebooks have earned a place on the desks and in the briefcases of business leaders worldwide.

The T500 series has added graphics performance capabilities for presentations and multimedia, yet is still thin and light for mobile computing.
Energy/Environment standards
ENERGY STAR Qualified Yes
EPEAT Compliant Yes
EPEAT Level EPEAT Gold
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Cache Memory
Installed Size: 3 MB
Type: L2 cache

Environmental Standards
ENERGY STAR Qualified: Yes
EPEAT Compliant: Yes
EPEAT Level: EPEAT Gold

Hard Drive
Serial ATA Interface: Serial ATA-150
Spindle Speed: 7200 rpm
Type: Portable

Supported Battery
Max Supported Qty: 2

Video Memory
Memory Allocation Technology: Dynamic Video Memory Technology 5.0

Processor
64-bit Computing: Yes
Clock Speed: 2.26 GHz
Features: Intel 64 Technology , Intel Dynamic Acceleration , Intel Trusted Execution Technology , Intel Virtualization Technology
Manufacturer: Intel
Number of Cores: Dual-Core
Processor Number: P8400
Type: Core 2 Duo

Networking
Compliant Standards: Bluetooth 2.0 , IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n (draft)
Data Link Protocol: Bluetooth 2.0 , Ethernet , Fast Ethernet , Gigabit Ethernet , IEEE 802.11a , IEEE 802.11b , IEEE 802.11g , IEEE 802.11n (draft)
Type: Network adapter
Wireless NIC: Intel WiFi Link 5100
Wireless Protocol: 802.11 a/b/g/n (draft) , Bluetooth 2.0

Storage Hard Drive
Capacity: 160 GB

OS Provided
Preinstalled OS: Windows XP
Type: Microsoft Windows Vista Business / XP Professional downgrade

Input Device
Features: Spill-proof
Type: Keyboard , TrackPoint , UltraNav

Interface Provided
Connector Type: 4 pin USB Type A
Qty: 3
Type: Hi-Speed USB



Connector Type: 15 pin HD D-Sub (HD-15)
Interface: VGA
Qty: 1
Type: Display / video



Connector Type: RJ-11
Interface: Phone line
Type: Modem



Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Type: Network



Connector Type: 4 pin FireWire
Type: IEEE 1394 (FireWire)



Connector Type: Mini-phone stereo 3.5 mm
Interface: Output
Type: Headphones



Connector Type: Mini-phone 3.5 mm
Interface: Input
Type: Microphone



Connector Type: 20 pin DisplayPort

RAM
Configuration Features: 1 x 2 GB
Form Factor: SO DIMM 204-pin
Installed Size: 2 GB
Max Supported Size: 8 GB
Memory Specification Compliance: PC3-8500
Memory Speed: 1066 MHz
Technology: DDR3 SDRAM

Software
Microsoft Office Preloaded: Includes a preinstalled image of select 2007 Microsoft Office suites. Purchase a Medialess License Kit (MLK) to activate the software.
Type: Adobe Reader , Fingerprint Software , McAfee VirusScan Plus with SiteAdvisor (30 days of virus definitions) , Microsoft Office 2007 (60 days trial) , PC Doctor , Roxio Creator Business Edition , Roxio My DVD , ThinkPad Utilities , ThinkVantage Access Connections , ThinkVantage Client Security , ThinkVantage Productivity Center , ThinkVantage Rescue and Recovery , ThinkVantage System Update , Windows Live Search , Windows Live Toolbar

Audio Input
Type: Microphone

Audio Output
Audio Codec: CX20561
Compliant Standards: High Definition Audio
Type: Sound card

Bay Provided
Total Qty: 1

Battery
Cells: 6-cell
Installed Qty: 1
Run Time (Up To): 6.3 hour(s)
Technology: Lithium ion

Cabinet (Chassis)
Built-in Devices (AB): Bluetooth antenna , Stereo speakers , ThinkLight , Wireless LAN antenna

Card Reader
Supported Flash Memory: Memory Stick , Memory Stick PRO , MultiMediaCard , SD Memory Card , SDHC Memory Card , xD-Picture Card , xD-Picture Card Type H
Type: 7 in 1 card reader

Display
Color Support: 24-bit (16.7 million colors)
Diagonal Size (metric): 39.1 cm
Display Resolution Abbreviation: WXGA
Projector Monitor Features: Anti-glare , LED-backlit
Technology: TFT active matrix
Widescreen Display: Yes

Header
Compatibility: PC
Localization: English
Manufacturer: Lenovo Promo Items
Model: 2242
Packaged Quantity: 1
Product Line: Lenovo ThinkPad T500

Mainboard
Chipset Type: Mobile Intel GM45 Express
Data Bus Speed: 1066 MHz

Miscellaneous
Compliant Standards: BSMI , CB , CCC , CE , CER , cUL , FCC Part 15 B , GOST , MIC , MPR II , MPR III , NOM , SASO , UL 60950 , VCCI-II
Features: Administrator password , Hard drive password , Power-on password , Security lock slot (cable lock sold separately) , ThinkPad Roll Cage
Manufacturer Selling Program: TopSeller
Service Provider: Cellular wireless ready

Modem
Features: V.92 upgradable
Max Transfer Rate: 56 Kbps
Protocols & Specifications: ITU V.90
Type: Fax / modem

Power Device
Form Factor: External
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V

Service
Support Details Full Contract Period: 1 year
Support Details Location: Pick-up and return
Support Details Service Included: Parts and labor
Support Details Type: Limited warranty

Slot Provided
Form Factor: SO DIMM 204-pin
Free Qty: 1
Total Qty: 2
Type: Memory



Form Factor: Type I/II
Total Qty: 1
Type: CardBus



Type: ExpressCard/54

Optical Storage (2nd)
Type: None

Storage Controller
Serial ATA Interface: Serial ATA-300
Type: Serial ATA

Storage Floppy Drive
Type: None

Storage Removable
Type: None

System
Embedded Security: Trusted Platform Module (TPM 1.2) Security Chip
Hard Drive Capacity: 160 GB
Notebook Type: Notebook
Platform Technology: Intel Centrino 2
Security Devices: Fingerprint reader

Video Output
Graphics Processor Vendor: Intel GMA 4500MHD

Dimensions & Weight
Depth: 10 in
Height: 1.3 in
Weight: 6 lbs
Width: 14.1 in

Optical Storage
Enclosure Type: Plug-in module
Read Speed: 24x (CD) / 8x (DVD)
Rewrite Speed: 16x (CD) / 6x (DVD±RW) / 5x (DVD-RAM)
Type: DVD±RW (±R DL) / DVD-RAM
Write Speed: 24x (CD) / 8x (DVD±R) / 4x (DVD±R DL)

Service & Support
Type: 1 year warranty

Display (Projector)
Diagonal Size: 15.4 in
Max Resolution: 1280 x 800
