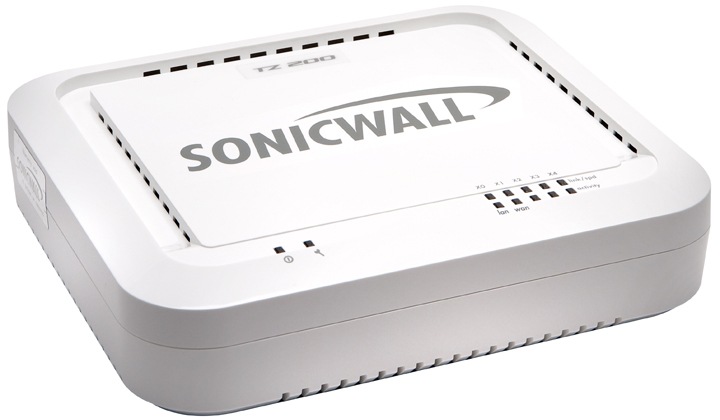

Dell SonicWALL TZ 200 TotalSecure - security appliance

Mfg. Part: 01-SSC-8746|CDW Part: 1808762|UNSPSC: 43222501
  • Security appliance
  • 10Mb LAN
  • 100Mb LAN
Availability:Call
Call for availability
CallCall


This item was discontinued on February 14, 2013.

Sales Assistance

800.800.4239 Mon-Fri 7am-7:30pm CT

Answer within 24 hours.



Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT
Product Overview
Main Features
  • Security appliance
  • 10Mb LAN
  • 100Mb LAN
Dell SonicWALL TotalSecure delivers the convenience of all-in-one network protection by combining gateway anti-virus, anti-spyware intrusion prevention, content filtering, firmware updates and 24X7 support onto a high-performance deep packet inspection firewall, creating a powerful, single security solution. Even before new threats begin to spread, TotalSecure solutions are automatically updated with signatures that stop attacks before they can enter the network, ensuring around-the-clock protection. TotalSecure provides complete network security against threats including viruses, spyware, worms, Trojans and more, yet it is simple to install and manage.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Bay Provided
Type: None

Capacity
Type: Concurrent connections
Value: 8000



Type: VPN tunnels (site-to-site)
Value: 10



Type: VPN users



Type: Authenticated users (internal database)
Value: 100

Dimensions & Weight
Depth: 9.1 in
Height: 2.9 in
Weight: 2 lbs
Width: 9 in

Environmental Parameters
Humidity Range Operating: 5 - 95%
Max Operating Temperature: 104 °F
Min Operating Temperature: 41 °F

Flash Memory
Installed Size: 16 MB
Type: Flash

Hard Drive
Type: None.

Header
Compatibility: PC
Manufacturer: SonicWALL
Model: TZ 200 TotalSecure
Packaged Quantity: 1
Product Line: Dell SonicWALL

Interface Provided
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX
Qty: 5
Type: Network



Connector Type: 4 pin USB Type A
Qty: 1
Type: USB

Miscellaneous
Authentication Method: Active Directory , LDAP , RADIUS , X.509 certificates , XAUTH authentication
Compliant Standards: C-Tick , CB , cUL , FCC Class B certified , FIPS 140-2 , ICES-003 Class B , ICSA Firewall certified , ICSA IPSec certified , MIC , NOM , RoHS , TUV GS , UL , VCCI Class B ITE , WEEE
Encryption Algorithm: 128-bit AES , 256-bit AES , AES , DES , IKE , MD5 , SHA-1 , Triple DES , WPA , WPA2
MTBF: 8 year(s)

Networking
Compliant Standards: IEEE 802.1x
Connectivity Technology: Wired
Data Link Protocol: Ethernet , Fast Ethernet
Features: Anti-spam protection , Antivirus analysis , DDos attack prevention , Deep Packet Inspection (DPI) , DHCP support , DoS attack prevention , Dynamic DNS server , Firewall protection , Intrusion Prevention System (IPS) , IPSec NAT-Traversal (NAT-T) , IPSec over WLAN , Load balancing , NAT support , PAT support , Routing , Stateful Packet Inspection (SPI) , VPN support
Form Factor: External
Network Transport Protocol: IPSec , L2TP
Remote Management Protocol: HTTP , HTTPS , SNMP 2
Routing Protocol: RIP-1 , RIP-2 , Static IP routing
Switching Protocol: Ethernet
Type: Security appliance

Optical Storage
Type: None

OS Provided
Type: SonicOS Enhanced

Performance
Type: Packet filter throughput
Value: 75 Mbps

Power Device
Form Factor: External
Frequency Required: 50/60 Hz
Installed Qty: 1
Nominal Voltage: AC 120/230 V
Type: Power adapter

RAM
Installed Size: 256 MB

Service
Support Details Full Contract Period: 1 year
Support Details Type: Virus definitions update



Support Details Type: E-mail database update



Support Details Type: Intrusion definitions update

Storage Floppy Drive
Type: None

Storage Removable
Type: None
