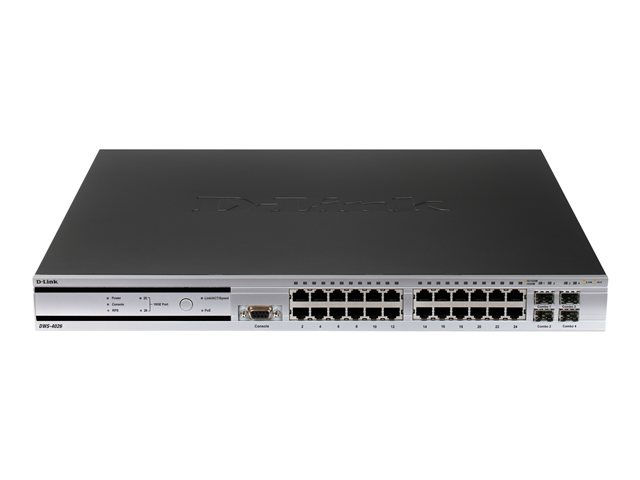

D-Link DWS-4026 L2+ Unified Wired/Wireless Gigabit Switch - switch - 24 por

Mfg. Part: DWS-4026|CDW Part: 2005834|UNSPSC: 43222612
  • Switch
  • managed
  • 24 x 10/100/1000 (PoE) + 4 x shared SFP
  • desktop
  • PoE
Availability:Call
Call for availability
CallCall


This item was discontinued on May 7, 2014.

Sales Assistance

800.800.4239 Mon-Fri 7am-7:30pm CT

Answer within 24 hours.



Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT
Product Overview
Main Features
  • Switch
  • managed
  • 24 x 10/100/1000 (PoE) + 4 x shared SFP
  • desktop
  • PoE
The D-Link DWS-4026 is a unified switch that provides centralized management of a wireless network infrastructure in business environments. Every port features Power over Ethernet (PoE) and Gigabit connectivity that support the high-speed wireless standard, 802.11n. All aspects of the wireless LAN may be centrally controlled, including SSIDs, VLAN and encryption keys. In addition, the switch can adjust the output power on each AP and perform dynamic channel allocation and load balancing between APs.

Fast roaming is supported, not only between physical Access Points, but also between logical IP subnets. The switch also includes full Layer2+ management features for use in mixed wired/wireless environments.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Bay Required
Type: None

Dimensions & Weight
Depth: 15.3 in
Height: 1.7 in
Weight: 13.2 lbs
Width: 17.3 in

Environmental Parameters
Humidity Range Operating: 10 - 90%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F

Header
Brand: D-Link
Compatibility: PC
Manufacturer: D-Link
Model: DWS-4026 L2+ Unified Wired/Wireless Gigabit Switch
Packaged Quantity: 1
Product Line: D-Link

Interface Provided
Comments: PoE
Connector Type: RJ-45
Qty: 24
Type: 1000Base-T



Comments: Management
Connector Type: DB-9
Qty: 1
Type: Console



Connector Type: SFP (mini-GBIC)
Qty: 4

Miscellaneous
Authentication Method: Extensible Authentication Protocol (EAP) , MS-CHAP v.2 , Radio Service Set ID (SSID) , RADIUS , Secure Shell (SSH) , Secure Shell v.2 (SSH2) , TACACS+
Compliant Standards: C-Tick , CB , cUL , EN 60601-1-2 , FCC Class A certified , ICES-003 , UL , VCCI
Encryption Algorithm: 128-bit WEP , 152-bit WEP , 64-bit WEP , AES-CCMP , MD5 , PEAP , SSL 3.0 , TKIP , TLS 1.0 , TTLS , WPA-PSK , WPA2 , WPA2-Enterprise , WPA2-PSK
Height (Rack Units): 1
MTBF: 185,540 hours

Networking
Cabling Type: Ethernet 1000Base-T , Ethernet 100Base-TX , Ethernet 10Base-T
Communication Mode: Full-duplex , Half-duplex
Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1D , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1v , IEEE 802.1w , IEEE 802.1x , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3x
Connectivity Technology: Wired
Data Transfer Rate: 1 Gbps
Empty Slots: 4 x shared SFP (mini-GBIC) / 2 x Expansion Slot
Features: Access Control List (ACL) support , ARP support , BOOTP support , Broadcast Storm Control , DHCP server , DHCP support , DoS attack prevention , Flow control , Full duplex capability , IGMP snooping , Jumbo Frames support , Layer 2 switching , MAC address filtering , Port mirroring , SNTP support , Syslog support , Traffic shaping , Trivial File Transfer Protocol (TFTP) support , Tunneling , VLAN support , Wireless Distribution System (WDS) support , Wireless Intrusion Detection System (WIDS) , WLAN controller mode
Form Factor: Desktop
MAC Address Table Size: 8K entries
Manageable: Yes
Ports Qty: 24
Power Over Ethernet (PoE): PoE
Remote Management Protocol: HTTP , HTTPS , RMON 1 , SNMP 1 , SNMP 2c , SNMP 3 , SSH-2 , Telnet , TFTP
Routing Protocol: RIP-1 , RIP-2 , Static IP routing , VRRP
Status Indicators: Link activity , Link OK , Port status , Port transmission speed , Power , RPS (Redundant Power Supply)
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Switching Protocol: Ethernet
Type: Switch

Ports
Qty: 24
Type: 10/100/1000 (PoE)

Ports (2nd)
Qty: 4
Type: Shared SFP

Power Device
Features: Redundant Power System (RPS) connector
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply

Slot Provided
Free Qty: 2
Total Qty: 2
Type: Expansion slot

Slot Required
Type: None
