Cisco 1760 Modular Access Router VPN Bundle
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT
Leasing FAQs

Cisco 1760 Modular Access Router VPN Bundle

Mfg. Part: CISCO1760-VPN/K9  |  CDW Part: 399871  |  UNSPSC: 43222609

This product was discontinued as of Wednesday, June 13, 2007. Call for availability.
1760 Modular Access Router (Base Version with pre-intstalled VPN) with 16MB flash memory (on-board); 32MB DRAM (on-board); Cisco's IOS IP software feature set, and two DSP module slots
Main Features
Log On to Email this Page or
Add to Favorites.





Looking for a replacement?
Consider one of these or find similar items

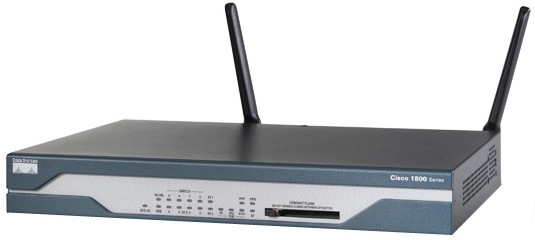

Cisco 1801W Integrated Services Router ADSL over POTS
Call
Product Overview
Technical Specs
Accessories
Warranties and Services
Product Overview
Main Features
  • 1760 Modular Access Router (Base Version with pre-intstalled VPN) with 16MB flash memory (on-board); 32MB DRAM (on-board); Cisco's IOS IP software feature set
  • and two DSP module slots
Perfect for small to mid-size businesses and enterprise branch offices Perfect for small to mid-size businesses and enterprise branch offices, Cisco's 1760 Modular Access Router is a powerfully secure, flexible access solution ideally designed to rapidly enable any organization's e-business capability. A 19-inch rackmountable modular platform, the Cisco 1760 offers secure Internet and Intranet access, as well as the capability to implement a variety of e-business and voice applications including VoIP, IPSec VPN, and business-class DSL. Base and pre-configured versions are available to address the needs of both present and future deployment strategies.

Cisco's 1760 Modular Access Router (Base Version w/pre-intstalled VPN) includes: 16MB flash memory (on-board); 32MB DRAM (on-board); Cisco's IOS IP software feature set, and two DSP module slots. Digital Signal Processors (DSPs) are available separately for future upgrades, as are Voice Interface Cards (VICs) and WAN Interface Cards (WICs). Flash memory and DRAM upgrades are also available seperately.


Cisco 1760 Router
VPN Module
16MB DRAM Upgrade: (48MB Total)
Cisco IOS Software: Cisco IOS IP Plus/FW/IDS IPSec 3DES
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Chassis
Installed Devices Modules Qty: 1
Supported Devices Modules Qty: 5
Flash Memory
Installed Size: 32 MB
Max Supported Size: 64 MB
Type: Flash
IP Telephony
Voice Codecs: G.723 , G.726 , G.728 , G.729 , G.729a
VoIP: Yes
VoIP Protocols: H.323 , MGCP , SIP v2
Networking
Communication Mode: Full-duplex , Half-duplex
Compliant Standards: IEEE 802.1Q
Connectivity Technology: Wired
Data Link Protocol: Ethernet , Fast Ethernet
Features: Auto-negotiation , DHCP support , Firewall protection , Full duplex capability , Hardware encryption , Modular design , NAT support , PAT support , VLAN support , VPN support
Form Factor: Rack-mountable
Modular: Modular
Network Transport Protocol: AppleTalk , IPSec , IPX/SPX , L2F , L2TP , RSVP , SLIP , SNA , TCP/IP
Remote Management Protocol: SNMP , Telnet
Routing Protocol: BGP , EIGRP , HSRP , NHRP , OSPF
Status Indicators: Link activity , Port status , Power
Type: Router
Miscellaneous
Authentication Method: CHAP , PAP , RADIUS , TACACS+ , X.509 certificates
Compliant Standards: CISPR 22 Class A , CSA , CTR 21 , EN 60950 , EN50082 , EN55022 , EN55024 , ETSI , GOST , ICES-003 , IEC 60950 , IEC 61000-3-2 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , UL , VCCI Class A ITE
Encryption Algorithm: Triple DES
Height (Rack Units): 1
Interface Provided
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX
Qty: 1
Type: Network
Interface: Auxiliary
Type: Serial
Interface: Console
Type: Management
Modem
Type: None
Environmental Parameters
Humidity Range Operating: 10 - 85%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Header
Compatibility: PC
Manufacturer: Cisco Systems
Model: 1760 VPN Bundle
Packaged Quantity: 1
Product Line: Cisco
OS Provided
Type: Cisco IOS
Power Device
Form Factor: Internal
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Power Provided: 50 Watt
Type: Power supply
Slot Provided
Free Qty: 2
Total Qty: 2
Type: WIC
Type: VIC
Free Qty: 0
Total Qty: 1
Type: Expansion slot
Type: Memory
Software
Type: Cisco IOS IP Plus
Dimensions & Weight
Depth: 12.8 in
Height: 1.7 in
Weight: 8.2 lbs
Width: 17.5 in
RAM
Installed Size: 96 MB
