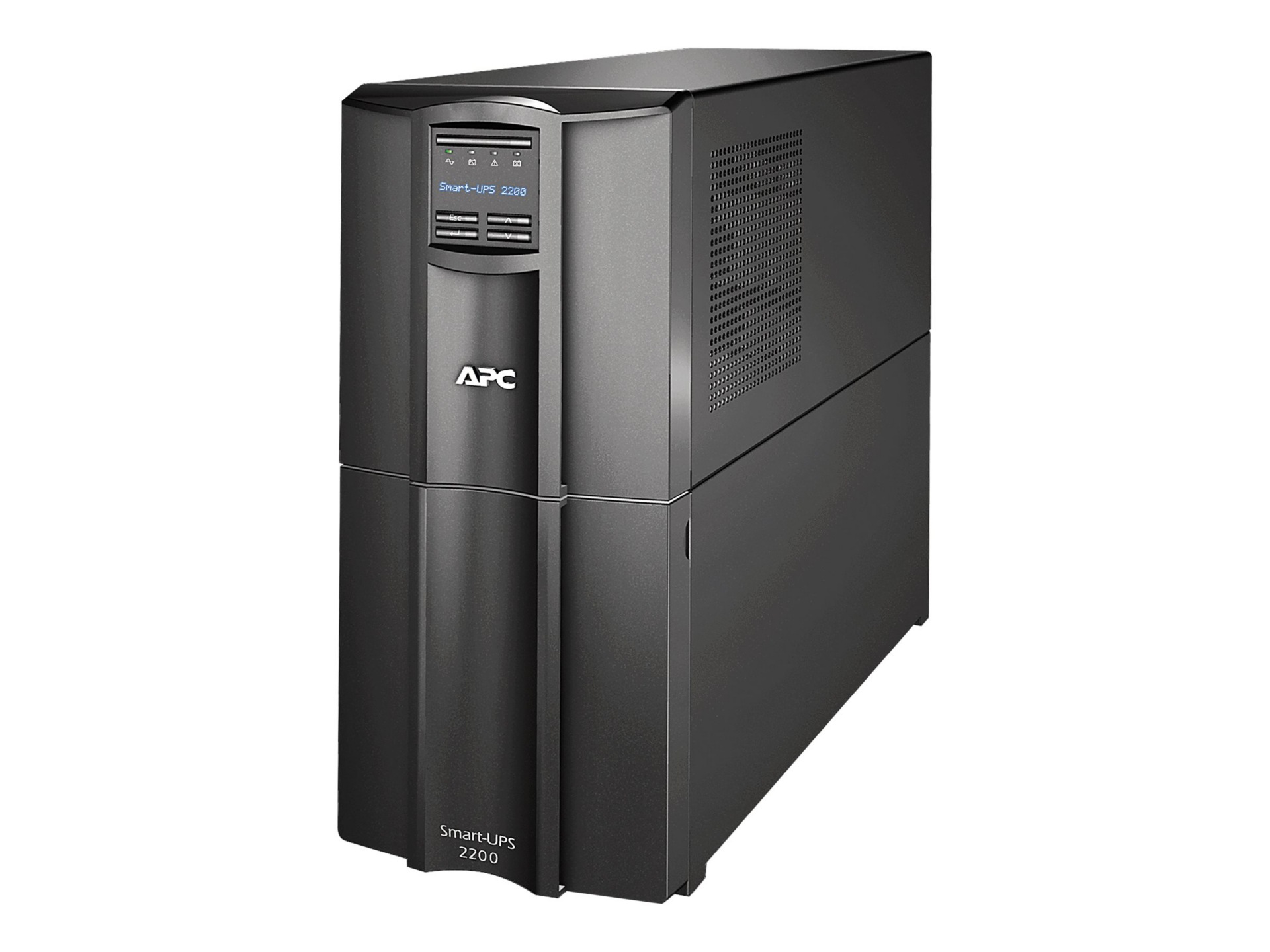

APC Smart-UPS 2200 LCD

Mfg. Part: SMT2200|CDW Part: 1988082|UNSPSC: 39121011
  • UPS
  • External
  • 2200 VA power capacity
  • 6.7 min battery run time (up to)
  • 1.98 kW power provided
  • AC 120 V
  • 3 year warranty
Availability:In Stock
Ships same day if ordered before 4pm CT
$856.99Advertised Price
Lease Option ($26.74 /month) Lease Availability
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.800.4239
Mon-Fri 7am-7:30pm CT

Recommended Warranty

Product Overview
Main Features
  • UPS
  • External
  • 2200 VA power capacity
  • 6.7 min battery run time (up to)
  • 1.98 kW power provided
  • AC 120 V
  • 3 year warranty
Intelligent line interactive power protection ideal for core business servers and mid-range network gear. Smart-UPS is trusted by millions of IT professionals throughout the world to protect equipment and critical data by supplying reliable, network-grade power reliably and efficiently.

APC by Schneider Electric's Smart-UPS is the most popular uninterruptible power supply (UPS) in the world for servers and other network devices such as switches, routers workstations and point-of-sale devices. Available in either traditional tower, rack optimized, or extended run convertible form factor (750va-3000va). The world's most popular network and server UPS.

Trusted by millions to protect critical data and equipment from power problems its proven line interactive design supplies clean and reliable network-grade power over a wide range of utility conditions. Conditions include surges, spikes, brownouts, blackouts and other transient conditions that can cause costly downtime, data loss or hardware damage.

Smart-UPS are known for their intelligence, monitoring and control capability. Users can actively manage power to their critical devices using an intuitive and interactive display, through the supplied PowerChute Business edition software or remotely with optional network management cards that plug directly into the unit's Smart-slot interface.

Patent pending "green" mode provides optimum reliability and efficiency of > 97% which saves utility and cooling costs without compromising availability.

Advanced battery management provides Temperature compensated charging which extends life and advanced algorithms proactively recommend battery replacement date. In addition, Switched Outlet Groups can allow users to Reboot Hung devices, shed non-critical loads to conserve runtime, and set sequenced startup/turn off.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Power Supply
Device Energy Rating: 530 Joules
Device Output Connector Type: Power NEMA 5-15 , Power NEMA 5-20

Battery
Load Type: At full load
Recharge Time: 3 hours
Run Time (Up To): 6.7 min

Power Output Connectors Details
Connector Qty: 8
Connector Type: Power NEMA 5-15



Connector Qty: 2
Connector Type: Power NEMA 5-20

Interface Provided
Connector Type: 9 pin D-Sub (DB-9)
Qty: 1
Type: Management (RS-232)



Type: USB



Type: EPO (emergency power off)

Cable
Connectivity Details Type: Serial cable



Connectivity Details Type: USB cable



Connectivity Details Length: 6 ft
Connectivity Details Type: Power cable

Service
Support Details Full Contract Period: 3 years
Support Details Type: Limited warranty



Support Details Full Contract Period: 2 years

Environmental Parameters
Humidity Range Operating: 0 - 95%
Max Operating Temperature: 104 °F
Min Operating Temperature: 32 °F
Sound Emission: 45 dBA

Header
Brand: APC
Compatibility: PC
Manufacturer: APC
Model: 2200 LCD
Packaged Quantity: 1
Product Line: APC Smart-UPS

Miscellaneous
Color: Black
Compliant Standards: CSA , FCC Part 15 A , RoHS Exemption 7b , UL 1449 , UL 1778
Product Color: Black

Networking
Remote Management Interface: RS-232 , USB

Power Device
Circuit Protection: Circuit breaker
Form Factor: External
Frequency Provided: 47 - 53 / 57-63 Hz
Frequency Required: 50/60 Hz
Input Connector Qty: 1
Input Connector Type: Power NEMA 5-20
Input Voltage Range: AC 82 - 144 V
Input Voltage Range (Adjustable): AC 75 - 154 V
Output Connector Qty: 10
Power Capacity (VA): 2200 VA
Power Device Features: Audible alarm , Emergency power off , LCD display
Power Provided: 1.98 kW
Surge Suppression: Yes
UPS Output Waveform: Sinewave
UPS Technology: Line interactive
Voltage Provided: AC 120 V
Voltage Provided Margin: ± 5%
Voltage Required: AC 120 V

Slot Provided
Free Qty: 1
Total Qty: 1
Type: SmartSlot

Software
Type: Drivers & Utilities

Dimensions & Weight
Depth: 21.5 in
Height: 17 in
Weight: 112.2 lbs
Width: 7.7 in

Service & Support
Type: 3 years warranty

Cable Details
Form Factor: External
Included Qty: 1



Form Factor: Integrated

Dimensions & Weight (Shipping)
Shipping Depth: 30 in
Shipping Height: 22 in
Shipping Weight: 134.3 lbs
Shipping Width: 15 in

General
Product Type: UPS
Subcategory: UPS

Run Time Details
Load Type: Full load
Run Time (Up To): 6.7



Load Type: Half load
Run Time (Up To): 24.1

Service & Support Details
Component: Batteries

UPS
Battery Technology: Lead acid

Product Reviews
APC Smart-UPS 2200 LCD 4.9 5 22 22
Two of these onsite - never any issues. Steady, clean power, network manageable with the optional add-in card. I connected a temperature probe to one of these in the server room. April 1, 2014
Brilliant UPS, used 2 of these to power a Virtualisation Cluster. Installed the Network Management Card 2 to integrate with our Zabbix monitoring system. Awesome and well recommended UPS. November 22, 2013
A great UPS. A real work-horse. Add the network management card and you'll have an excellent system. The 20A capacity helps if you have the feeder circuit to let it run full-bore. Shame it's so old. :-) August 6, 2013
Great low-maintenance UPS. The only thing I've had to change is the batteries. Battery replacement is very simple and batteries can be hot-swapped. June 6, 2013
I use one of these at home to keep my esxi server, router, cable model, and WAP active in case of a power failure. I also have it set to notify me if there are any power outages, as there are things at home that I need to take care of asap if we lose power. Replacement batteries are expensive, but well worth it. February 15, 2013
Used these for years, reliable kit and when combined with PowerChute you can safely power off your servers. Replacing the battery is easy and can be done 'hot'. Also the cost of both the UPS and replacement batteries are value for money. January 22, 2013
very strong and silent ups, lots of power outlets and programmable power groups.has 1 16AMP output and 8 10AMP outputs.LCD screen is bright and clear to read. it comes bundled with apc business edtion (free to 5 systems) and has both rs-232 and usb monitor port.battery is replaced at the front and easy to access December 21, 2012
Solid UPS, capable of very good runtimes. This is an earlier model that lacks the front LCD; it instead only has two rows of lights, for load and battery capacity. With a network management card though, that's no big deal - to really use this UPS, you need the NMC anyway. Running great for 18 months now. October 26, 2012
